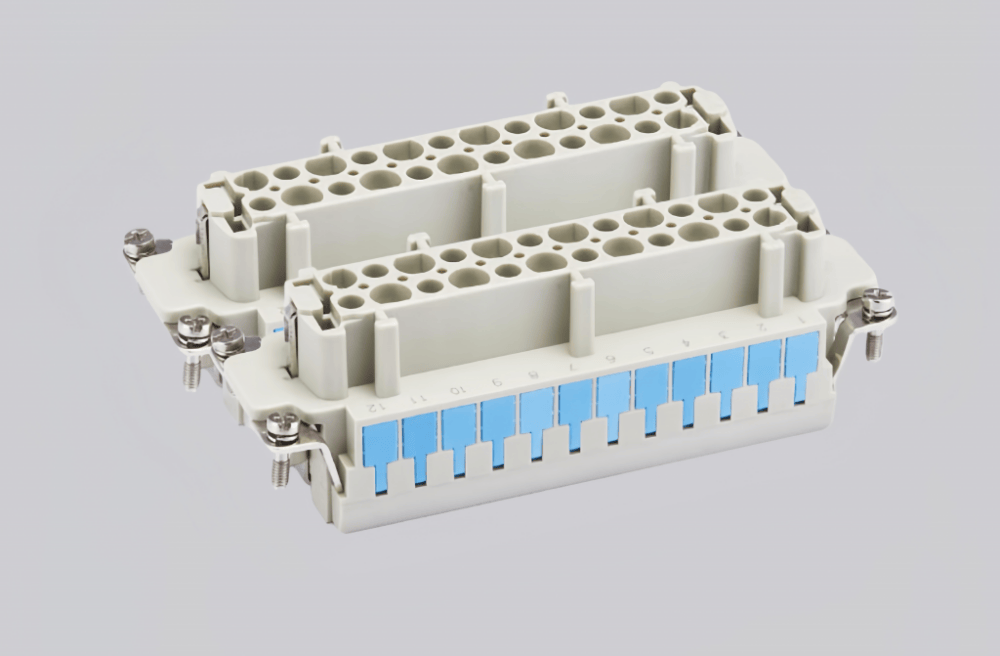

HE-024-FS B(25-48) | High-Quality Rectangular Connectors

The HE-024-FS B(25-48) is a heavy-duty female industrial circular connector, perfectly paired with male counterparts like the HE-024-MS B(25-48) for high-power, multi-channel connectivity. Its rugged metal housing and IP67 ingress protection rating provide robust defense against dust, moisture, and mechanical impact, ensuring stable performance in harsh industrial environments such as factory floors and outdoor installations.

It is equipped with 24 gold-plated female contacts, which minimize contact resistance and ensure efficient power and signal transmission. The connector supports a rated current of 8A per contact and a rated voltage of 400V AC/DC, with an operating temperature range from -40°C to 125°C to adapt to extreme thermal conditions.

Featuring a B-type bayonet locking mechanism, it enables tool-free, quick mating and unmating while maintaining vibration-resistant connections. Its 25–48 wire gauge compatibility makes it ideal for heavy machinery, power distribution systems, and industrial automation equipment requiring reliable, high-density connectivity solutions.

HE-024-FS B(25-48) | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HE insert series
Connection type	Spring connection
Male/female	Female
Specifications	24B、48B
Number of connector contacts	24
Grounding contacts	Yes
Rated current	16A
Rated voltage	500V
Rated pulse voltage	6KV
Class of pollution	3
Parameters when class of pollution is 2	16A 400/690V 6KV 2
Rated voltage as per UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Working temperature	-40℃...+125℃
Mating cycles	≥500
Inserts material	Polycarbonate
Inserts color	RAL 7032 (light gray)
Flame retardant rating as per UL94	V0
Contact material	Copper alloy
Surface treatment	Silver-plated
Contact resistance	≤1mΩ
Wire gauge (mm²)	0.14-2.5mm²
Wire gauge (AWG)	26-14 AWG
Stripping length	7-9mm
Standard	DIN EN 60 664, DIN EN 61984
