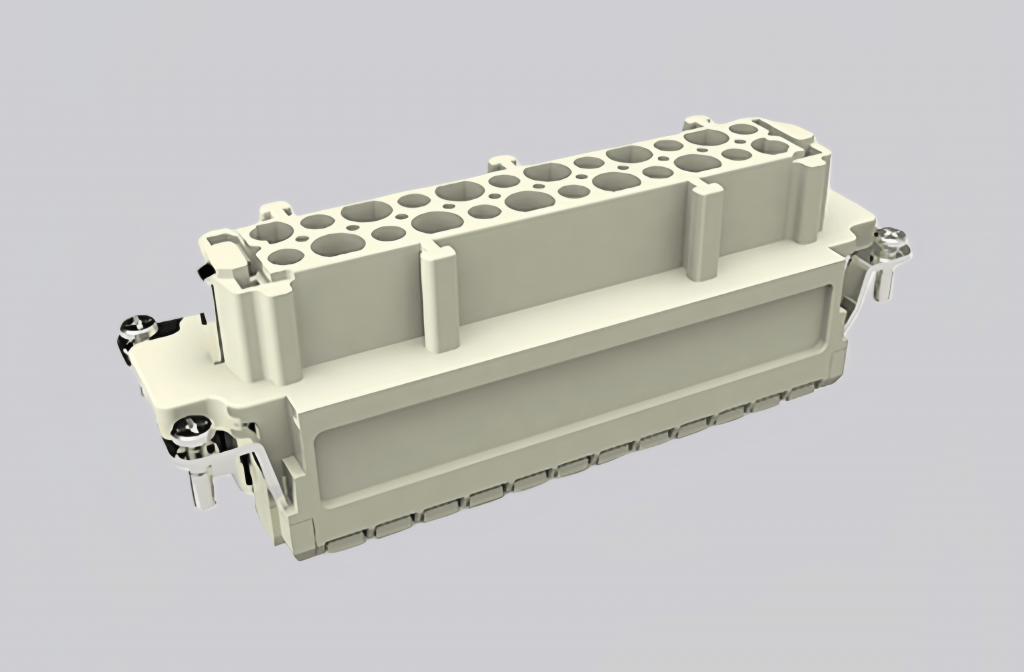

The HE-024-FQ P is a high-density female industrial circular connector engineered for precision connectivity in complex industrial setups. Crafted with a reinforced metal housing and IP67 ingress protection, it offers robust defense against dust, liquid intrusion, and mechanical abrasion, ensuring uninterrupted operation in harsh environments.
Equipped with 24 gold-plated female contacts, this connector delivers ultra-low contact resistance and stable signal transmission. It supports a rated current of 5A per contact and a rated voltage of 300V AC/DC, with a broad operating temperature range from -40°C to 125°C to accommodate extreme temperature fluctuations.
Featuring a quick-release bayonet locking system, the HE-024-FQ P enables tool-free, secure mating and unmating even under high vibration. Its compact, high-density design makes it perfect for space-constrained applications such as industrial control panels, test equipment, and communication devices requiring reliable multi-channel connectivity.
Technical Data
| Series | HE insert series |
| Connection type | Spring connection (quick connection) |
| Male/female | Female |
| Specifications | 24B、48B |
| Number of connector contacts | 24 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 16A 400/690V 6KV 2 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.5-2.5mm² |
| Wire gauge (AWG) | 20-14 AWG |
| Stripping length | 9-10mm |
| Standard | DIN EN 60 664, DIN EN 61984 |
