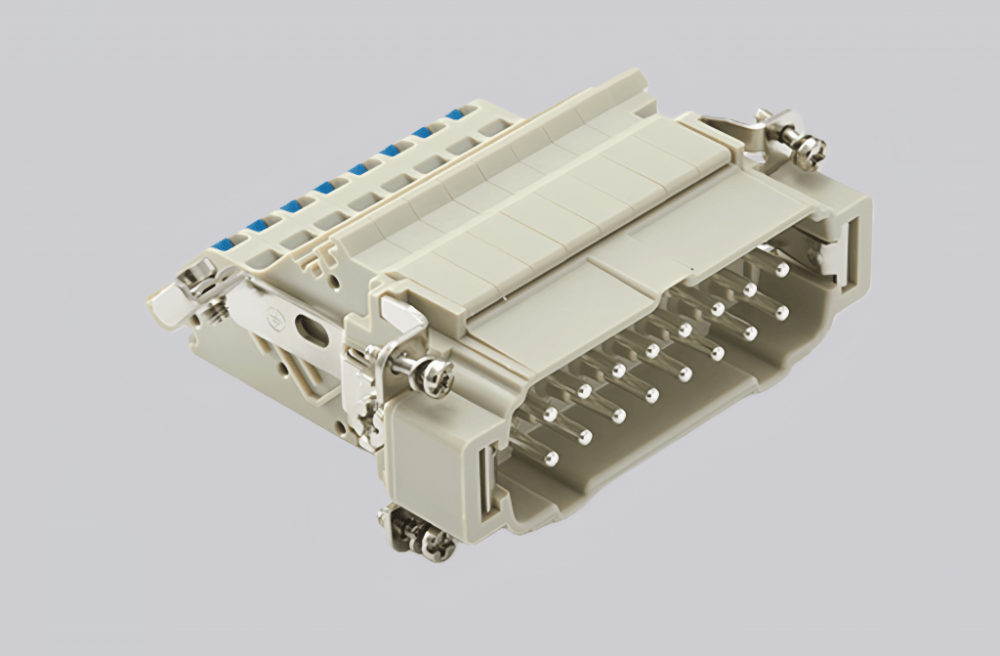

The HE-016-MQ.AV.R is a high-performance circular industrial connector designed for stable signal and power transmission in harsh operating conditions. Its compact yet robust metal housing delivers IP67 ingress protection, effectively shielding against dust, moisture, and other contaminants that may disrupt operation.
It is equipped with 16 gold-plated contacts that minimize contact resistance and offer superior corrosion resistance. The connector supports a maximum voltage of 600V AC/DC and a 10A current rating per contact, ensuring consistent electrical performance for demanding industrial applications.
Featuring a bayonet locking mechanism, the HE-016-MQ.AV.R enables quick, secure mating and unmating, making it perfect for automation, heavy machinery, and automotive sectors with frequent connection needs. Its lightweight build and compatibility with standard mounting setups further boost installation flexibility and system integration efficiency.
Technical Data
| Series | HE insert series |
| Connection type | Spring connection (quick connection) |
| Male/female | Male |
| Specifications | 16B、32B |
| Number of connector contacts | 16 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 16A 400/690V 6KV 2 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤4mΩ |
| Wire gauge (mm²) | 0.5-4.0mm² |
| Wire gauge (AWG) | 20-12 AWG |
| Tightening/testing torque | 0.5Nm |
| Stripping length | 9.5-10.5mm |
| Standard | DIN EN 60 664、DIN EN 61 984 |
