HE-016-MQ.AV.L | High-Quality Rectangular Connectors

The HE-016-MQ.AV.L is a high-performance circular industrial connector tailored for stable signal and power transmission in harsh operating scenarios. Its compact yet sturdy metal housing provides IP67 ingress protection, effectively warding off dust, moisture and other contaminants that could interfere with operational stability.

It comes with 16 gold-plated contacts, which reduce contact resistance significantly and deliver excellent corrosion resistance. The connector supports a maximum voltage of 600V AC/DC and a 10A current rating per contact, guaranteeing reliable electrical performance for heavy-duty industrial applications.

Equipped with a bayonet locking mechanism, the HE-016-MQ.AV.L allows for quick and secure mating and unmating, making it ideal for automation, heavy machinery and automotive fields with frequent connection requirements. Its lightweight structure and compatibility with standard mounting configurations further enhance installation flexibility and system integration efficiency.

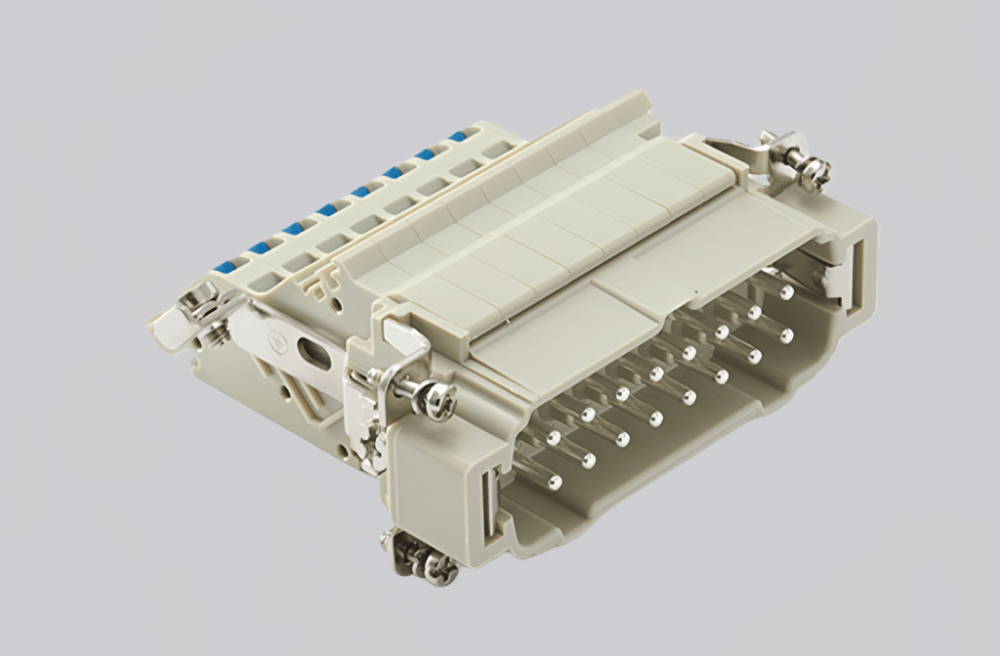

HE-016-MQ.AV.L | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HE insert series
Connection type	Spring connection (quick connection)
Male/female	Male
Specifications	16B、32B
Number of connector contacts	16
Grounding contacts	Yes
Rated current	16A
Rated voltage	500V
Rated pulse voltage	6KV
Class of pollution	3
Parameters when class of pollution is 2	16A 400/690V 6KV 2
Rated voltage as per UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Working temperature	-40℃...+125℃
Mating cycles	≥500
Inserts material	Polycarbonate
Inserts color	RAL 7032 (light gray)
Flame retardant rating as per UL94	V0
Contact material	Copper alloy
Surface treatment	Silver-plated
Contact resistance	≤4mΩ
Wire gauge (mm²)	0.5-4.0mm²
Wire gauge (AWG)	20-12 AWG
Tightening/testing torque	0.5Nm
Stripping length	9.5-10.5mm
Standard	DIN EN 60 664、DIN EN 61 984
