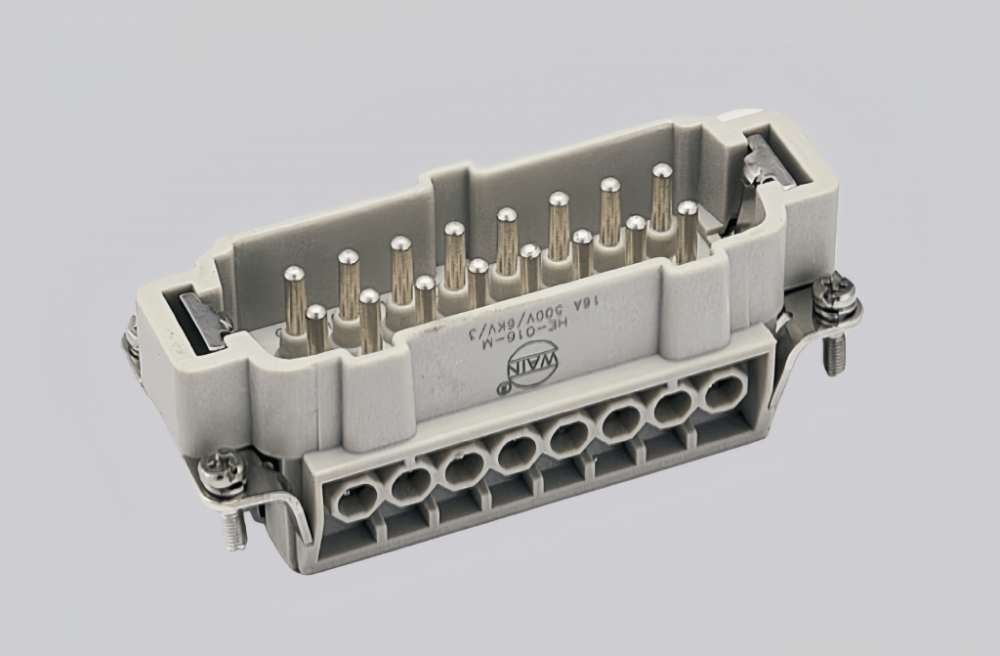

The HE-016-M is a high-performance heavy-duty industrial connector designed for reliable power and signal transmission. It features a 16-contact configuration, 16A rated current, 500V rated voltage, and a grounding pin for stable operation in medium-to-high-power industrial scenarios.
Its flame-retardant PC shell (UL94 V0) and silver-plated pins minimize signal loss and resist corrosion. The double-buckle screw-locking design ensures anti-vibration connectivity, while supporting 1.0–2.5mm² wire crimping/cold pressing.
Compliant with DIN VDE, CQC, and CE standards, it works in -40℃ to +125℃ environments, boasting over 500 insertion/extraction cycles for construction, textile, and printing machinery use.
Technical Data
| Series | HE insert series |
| Connection type | Screw connection |
| Male/female | Male |
| Specifications | 16B、32B |
| Number of connector contacts | 16 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 16A 400/690V 6KV 2 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.75-2.5mm² |
| Wire gauge (AWG) | 18-14 AWG |
| Tightening/testing torque | 0.5Nm |
| Stripping length | 7mm |
| Standard | DIN EN 60 664、DIN EN 61984 |
