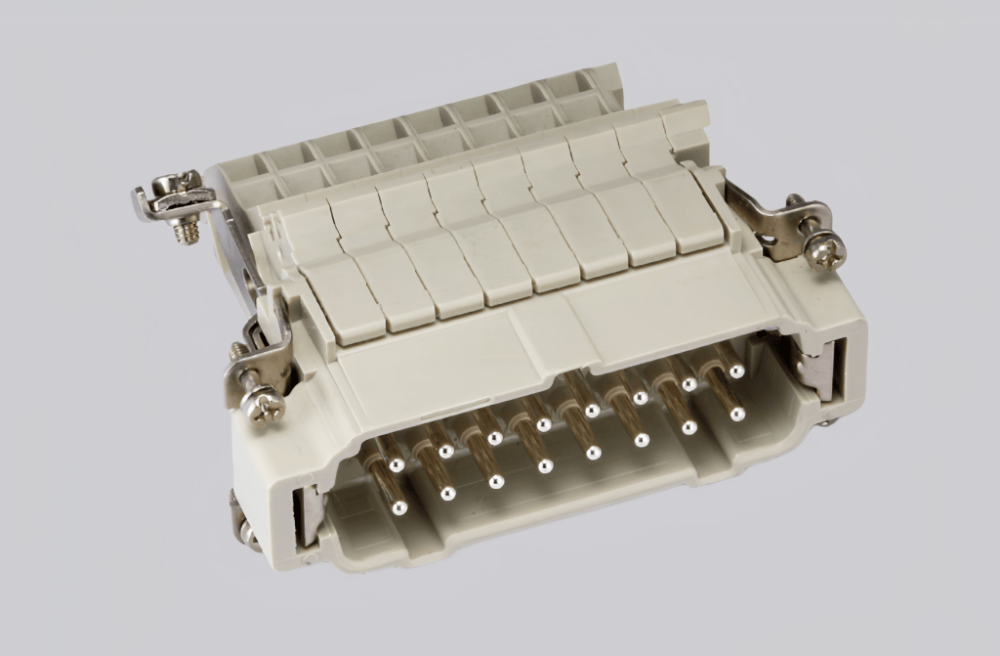

The HE-016-M.AV.R is a high-performance male insert from the HE AV insert series, designed to deliver reliable power and signal transmission in demanding industrial environments. With a 16-contact configuration and integrated grounding contacts, it ensures stable electrical performance and enhanced operational safety.
Featuring a screw connection design, the HE-016-M.AV.R allows secure and efficient wire termination while simplifying installation and maintenance. It supports wire sizes from 0.14 to 2.5 mm² (26–14 AWG), providing flexibility for various industrial wiring requirements.
Rated for currents up to 16 A and voltages up to 500 V, this insert also offers a rated impulse voltage of 6 kV and pollution degree 3. Its robust and durable construction makes it ideal for automation equipment, machinery, and industrial connector solutions that require long-term reliability and consistent performance.
Technical Data
| Series | HE AV insert series |
| Male / Female | Male |
| Connection type | Screw connection |
| Specifications | 16B / 32B |
| Number of connector contacts | 16 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated voltage (UL / CSA) | 600V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹ºΩ |
| Working temperature | -40℃…+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating (UL94) | V0 |
| Contact material | Copper alloy |
| Bonding side | Silver-plated |
| Connection side | Tin-plated |
| Contact resistance | ≤4mΩ |
| Wire gauge (mm²) | 0.14–2.5 mm² |
| Wire gauge (AWG) | 26–14 AWG |
| Tightening / testing torque | 0.5 Nm |
| Standard | DIN EN 60664 / DIN EN 61984 |
