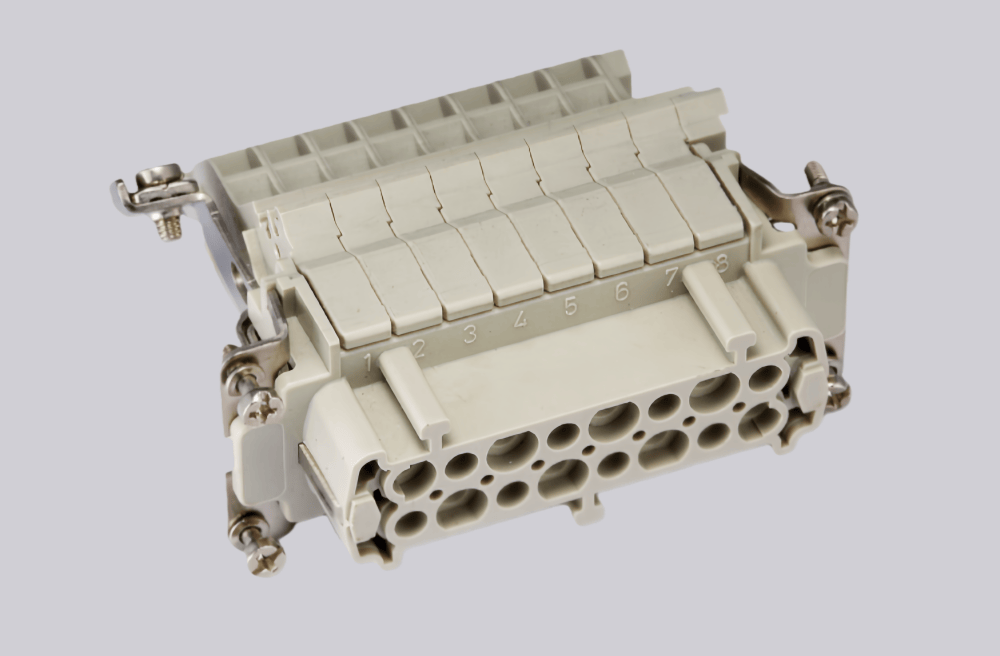

The HE-016-F.AV.L is a high-performance female insert from the HE AV insert series, engineered for stable power and signal transmission in demanding industrial environments. With a 16-contact layout and integrated grounding contacts, it ensures reliable connectivity and enhanced operational safety in complex electrical systems.
Designed with a screw connection mechanism, the HE-016-F.AV.L allows secure and efficient wire termination while simplifying installation and maintenance. It supports wire sizes from 0.14 to 2.5 mm² (26–14 AWG), offering flexibility for various wiring requirements and reducing installation time in industrial applications.
Rated for currents up to 16 A and voltages up to 500 V, this insert also features a rated impulse voltage of 6 kV and pollution degree 3, ensuring dependable performance under harsh and polluted conditions. Its robust construction makes it ideal for automation equipment, machinery, and industrial connector solutions where durability, safety, and long-term reliability are essential.
Technical Data
| Series | HE AV insert series |
| Male / Female | Female |
| Connection type | Screw connection |
| Specifications | 16B / 32B |
| Number of connector contacts | 16 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated voltage (UL / CSA) | 600V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹ºΩ |
| Working temperature | -40℃…+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating (UL94) | V0 |
| Contact material | Copper alloy |
| Bonding side | Silver-plated |
| Connection side | Tin-plated |
| Contact resistance | ≤4mΩ |
| Wire gauge (mm²) | 0.14–2.5 mm² |
| Wire gauge (AWG) | 26–14 AWG |
| Tightening / testing torque | 0.5 Nm |
| Standard | DIN EN 60664 / DIN EN 61984 |
