HE-010-MS B | High-Quality Rectangular Connectors

The HE-010-MS B is a heavy-duty male industrial circular connector, engineered for secure, high-performance mating with female counterparts such as the HE-010-FS B in rugged industrial environments. Its durable metal housing holds an IP67 ingress protection rating, offering reliable defense against dust, moisture, and mechanical impact to ensure uninterrupted operation in factory floors, outdoor installations, and heavy machinery setups.

Equipped with 10 gold-plated male contacts, the connector minimizes contact resistance and delivers stable power transmission. It supports a rated current of 10A per contact and a rated voltage of 500V AC/DC, with a broad operating temperature range from -40°C to 125°C that adapts to extreme thermal fluctuations.

Featuring a B-type bayonet locking mechanism, it enables tool-free, quick mating and unmating while maintaining a vibration-resistant connection. This design makes it ideal for industrial automation systems, robotics, and power distribution units that demand long-lasting, high-reliability connectivity solutions.

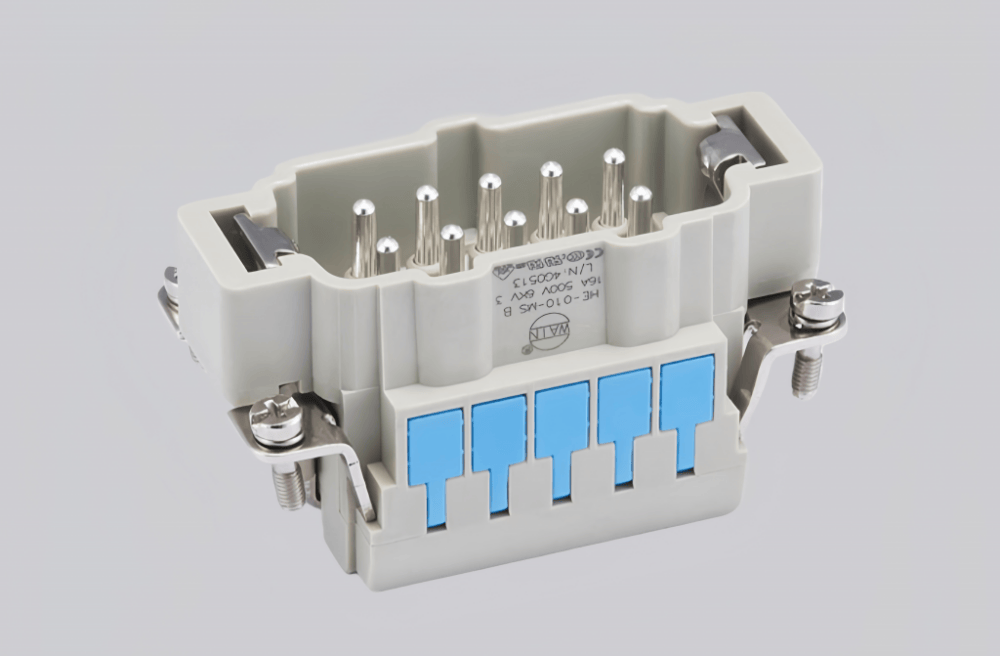

HE-010-MS B | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HE insert series
Connection type	Spring connection
Male/female	Male
Specifications	10B
Number of connector contacts	10
Grounding contacts	Yes
Rated current	16A
Rated voltage	500V
Rated pulse voltage	6KV
Class of pollution	3
Parameters when class of pollution is 2	16A 400/690V 6KV 2
Rated voltage as per UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Working temperature	-40℃...+125℃
Mating cycles	≥500
Inserts material	Polycarbonate
Inserts color	RAL 7032 (light gray)
Flame retardant rating as per UL94	V0
Contact material	Copper alloy
Surface treatment	Silver-plated
Contact resistance	≤1mΩ
Wire gauge (mm²)	0.14-2.5mm²
Wire gauge (AWG)	26-14 AWG
Stripping length	7-9mm
Standard	DIN EN 60 664, DIN EN 61984
