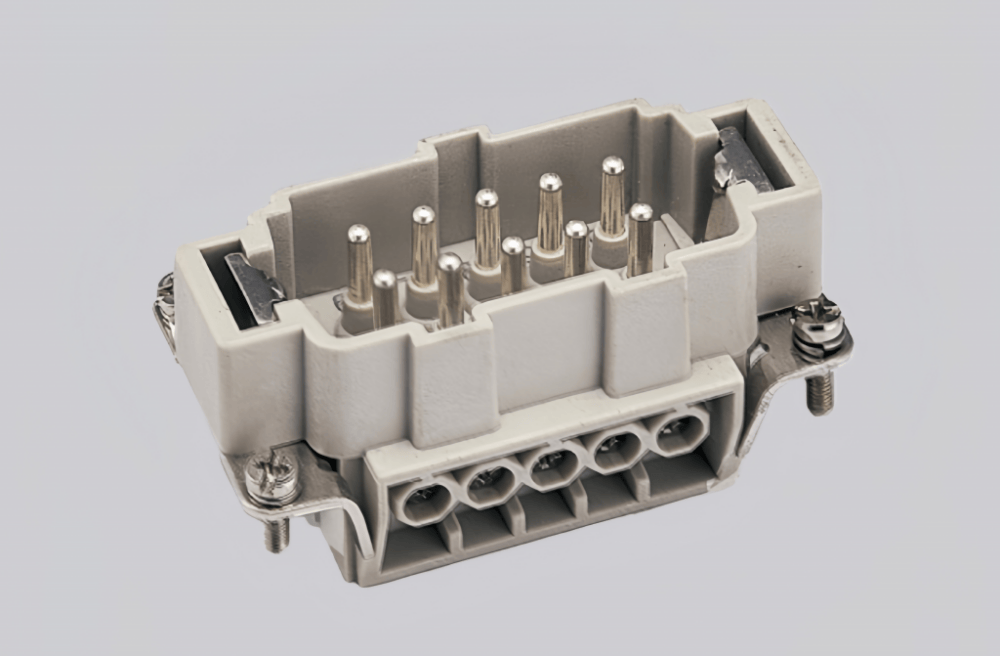

The HE-010-M is a high-performance industrial circular connector designed for rugged, harsh-environment applications. Its heavy-duty metal housing ensures exceptional durability, while the IP67 ingress protection rating effectively shields against dust, water immersion, and corrosive industrial elements.
Equipped with 10 gold-plated contacts, this connector delivers low contact resistance and stable electrical conductivity, supporting a rated current of 10A per contact and a rated voltage of 500V AC/DC. It operates reliably across a wide temperature range from -40°C to 125°C, adapting to extreme working conditions.
Featuring a user-friendly bayonet locking mechanism, the HE-010-M enables quick, tool-free mating and unmating. The secure lock resists vibration and shock, making it ideal for automation systems, robotics, and heavy machinery that demand consistent, long-lasting connectivity.

Technical Data
| Series | HE insert series |
| Connection type | Screw connection |
| Male/female | Male |
| Specifications | 10B |
| Number of connector contacts | 10 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 16A 400/690V 6KV 2 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.75-2.5mm² |
| Wire gauge (AWG) | 18-14 AWG |
| Tightening/testing torque | 0.5Nm |
| Stripping length | 7mm |
| Standard | DIN EN 60 664, DIN EN 61984 |
