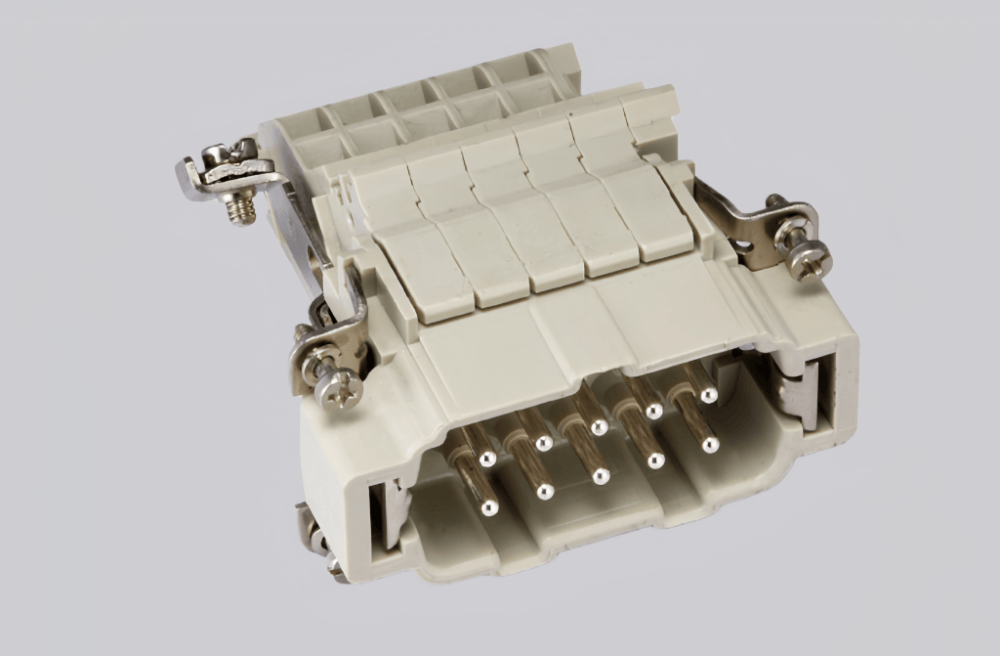

The HE-010-M.AV.L is a high-performance connector insert designed for reliable power and signal transmission in demanding industrial environments. It is manufactured with high-quality contacts and precision surface treatment, ensuring low contact resistance, excellent electrical conductivity, and stable electrical performance during continuous operation.
Featuring a secure connection design, the HE-010-M.AV.L provides strong mechanical retention and effective vibration resistance, making it suitable for long-term use in harsh working conditions. Its optimized contact arrangement and compact structure allow efficient space utilization while maintaining consistent electrical and mechanical performance.
Engineered to meet strict industrial standards, the HE-010-M.AV.L offers excellent durability, wear resistance, and dependable operation. It is an ideal solution for industrial automation, control systems, and equipment connection applications where reliability, safety, and efficiency are essential.
Technical Data
| Series | HE AV insert series |
| Male/female | Male |
| Connection type | Screw connection |
| Specifications | 10B |
| Number of connector contacts | 10 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated voltage (UL / CSA) | 600V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹ºΩ |
| Working temperature | -40℃…+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating (UL94) | V0 |
| Contact material | Copper alloy |
| Bonding side | Silver-plated |
| Connection side | Tin-plated |
| Contact resistance | ≤4mΩ |
| Wire gauge (mm²) | 0.14–2.5 mm² |
| Wire gauge (AWG) | 26–14 AWG |
| Tightening / testing torque | 0.5 Nm |
| Standard | DIN EN 60664 / DIN EN 61984 |
