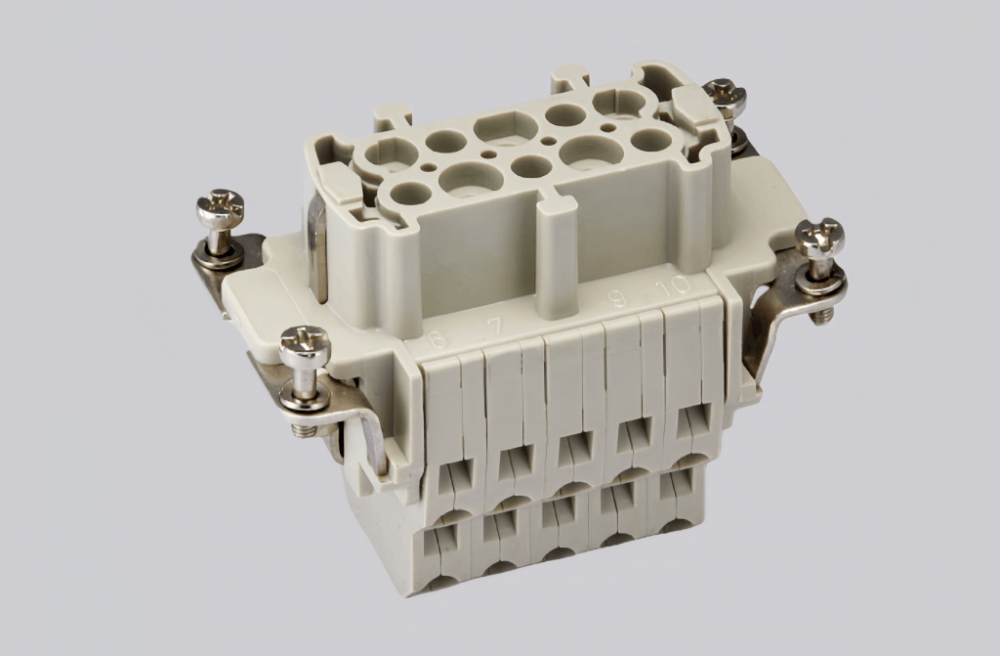

The HE-010-FSS is a high-performance heavy-duty industrial connector engineered for stable power and signal transmission. It features a 10-contact configuration, matching rated current and voltage parameters for low-to-medium-power industrial scenarios, with a grounding pin for enhanced safety.
Its UL94 V0 flame-retardant PC shell and silver-plated pins reduce contact resistance and resist corrosion. The anti-vibration double-buckle screw-locking design prevents accidental disconnection, supporting 1.0–2.5mm² wire via crimping or cold pressing.
Compliant with DIN VDE, CQC and CE standards, it operates stably in -40℃ to +125℃ environments, with over 500 insertion/extraction cycles, ideal for light industrial machinery and automation systems.
Technical Data
| Series | HE insert series |
| Connection type | Spring connection |
| Male/female | Female |
| Specifications | 10B |
| Number of connector contacts | 10 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 16A 400/690V 6KV 2 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Stripping length | 7-9mm |
| Standard | DIN EN 60 664、DIN EN 61984 |
