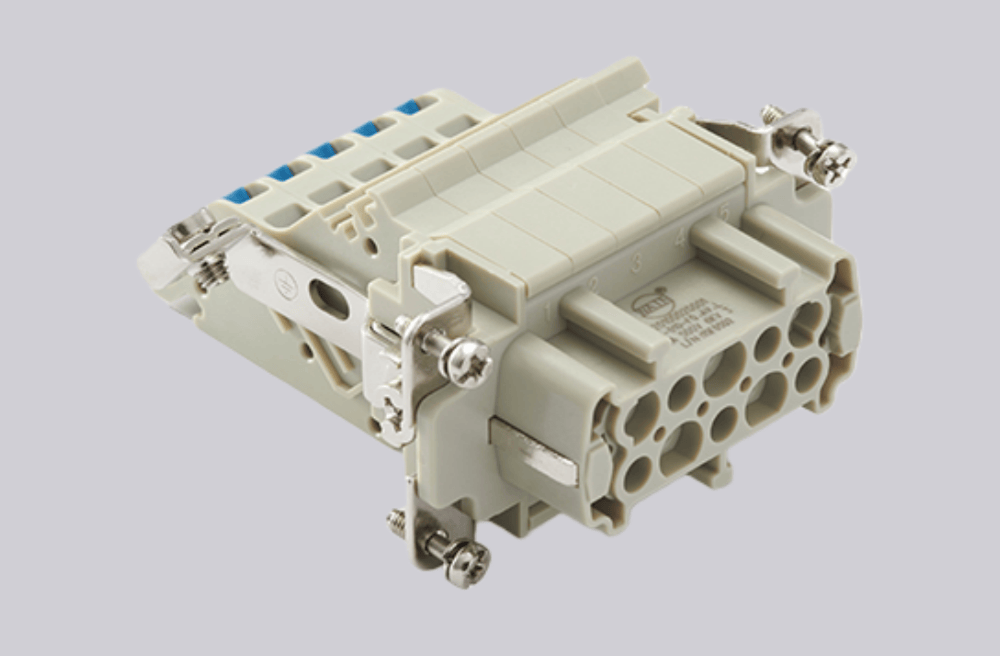

HE-010-FQ.AV.R | High-Quality Rectangular Connectors

The HE-010-FQ.AV.R is a high-performance circular industrial connector engineered for steady signal and power transmission in harsh industrial settings. Its rugged metal housing features IP67 ingress protection, effectively blocking dust, moisture and other external contaminants that might impair operational reliability.

It is fitted with 10 gold-plated contacts, which minimize contact resistance and provide outstanding corrosion resistance for long-term stable use. The connector supports a maximum voltage of 600V AC/DC and a 10A current rating per contact, meeting the electrical demands of various heavy-duty applications.

Featuring a bayonet locking mechanism, the HE-010-FQ.AV.R enables fast, secure mating and unmating, making it well-suited for automation, heavy machinery and automotive sectors requiring frequent disconnection. Its lightweight design and compatibility with standard mounting setups further improve installation flexibility and system integration efficiency.

HE-010-FQ.AV.R | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HE insert series
Connection type	Spring connection (quick connection)
Male/female	Female
Specifications	10B
Number of connector contacts	10
Grounding contacts	Yes
Rated current	16A
Rated voltage	500V
Rated pulse voltage	6KV
Class of pollution	3
Parameters when class of pollution is 2	16A 400/690V 6KV 2
Rated voltage as per UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Working temperature	-40℃...+125℃
Mating cycles	≥500
Inserts material	Polycarbonate
Inserts color	RAL 7032 (light gray)
Flame retardant rating as per UL94	V0
Contact material	Copper alloy
Surface treatment	Silver-plated
Contact resistance	≤4mΩ
Wire gauge (mm²)	0.5-4.0mm²
Wire gauge (AWG)	20-12 AWG
Tightening/testing torque	0.5Nm
Stripping length	9.5-10.5mm
Standard	DIN EN 60 664; DIN EN 61 984
