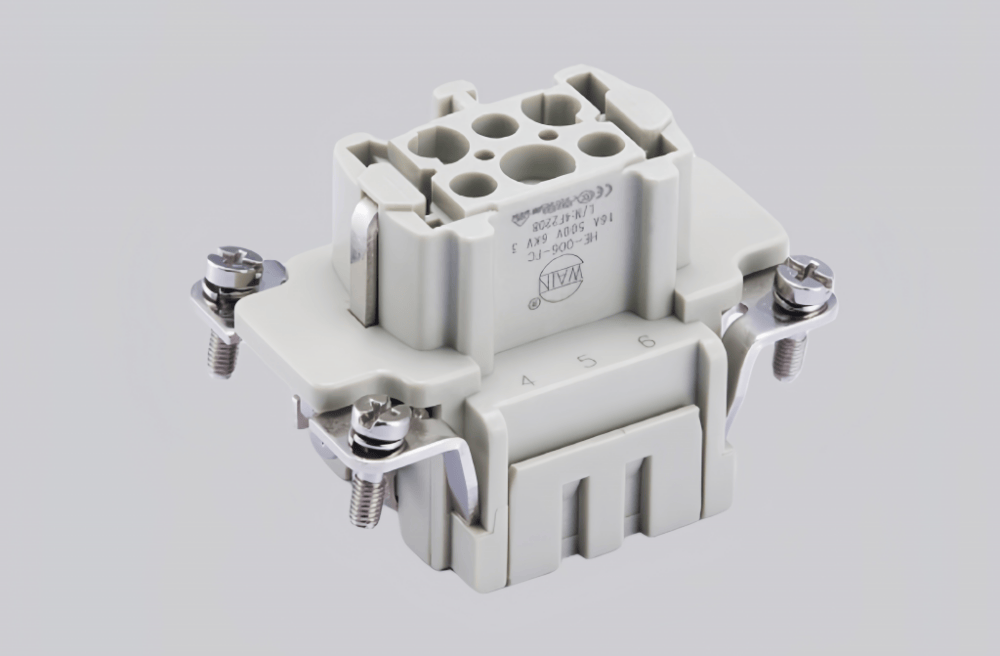

The HE-006-FS is a high-performance female industrial circular connector, meticulously engineered for stable power and signal transmission in harsh industrial environments. It adopts a rugged metal housing that delivers exceptional resistance to vibration, corrosion, and extreme temperatures ranging from -40°C to 125°C, ensuring long-lasting reliability in demanding working conditions.
Equipped with a precision bayonet locking mechanism, it enables tool-free, rapid mating and unmating while maintaining a tight, anti-loosening connection even under intense mechanical stress. Rated at 15A per contact and 250V AC/DC, it is ideally suited for automation systems, industrial machinery, and outdoor electrical equipment.
With an IP67 ingress protection rating, it effectively prevents dust and water intrusion, guaranteeing steady performance for mission-critical industrial applications.
Technical Data
| Series | HE insert series |
| Connection type | Spring connection |
| Male/female | Female |
| Specifications | 6B |
| Number of connector contacts | 6 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 16A 400/690V 6KV 2 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Stripping length | 7-9mm |
| Standard | DIN EN 60 664、DIN EN 61984 |
