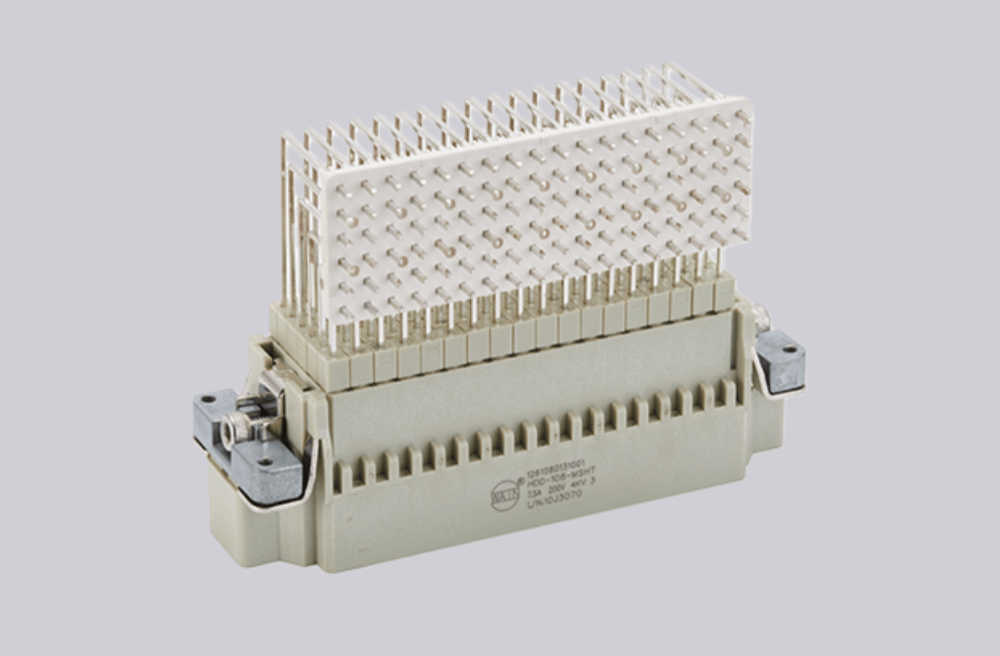

The HDD-108-MSHT is a high-performance industrial connector engineered for heavy-duty applications that demand stable power and signal transmission. Equipped with a 108-contact arrangement, it is optimized to sustain consistent connectivity in mission-critical industrial settings, balancing a compact size with high contact density for complex circuit integration.
Constructed with a rugged metal housing, the HDD-108-MSHT provides outstanding EMI shielding and mechanical durability. It resists extreme operating conditions such as temperatures from -40°C to 125°C, persistent vibration, and moisture exposure, while its quick-lock mating mechanism allows for tool-free, one-step installation to boost operational efficiency.
Compliant with IP67 ingress protection standards, this connector is perfectly suited for automation systems, industrial machinery, and outdoor equipment applications. It offers a cost-effective, reliable connectivity solution that reduces downtime and guarantees long-term performance in harsh industrial environments.
Technical Data
| Series | HDD insert series |
| Connection type | Welding connection |
| Male/female | Male |
| Specifications | 24B |
| Number of connector contacts | 108 |
| Grounding contacts | Yes |
| Rated current | 7.5A |
| Rated voltage | 200V |
| Rated pulse voltage | 4KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 7.5A 320V 4kV 2 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Contact terminal: silver-plated; Solder terminal: tin-plated |
| Contact resistance | ≤15mΩ |
| Standard | DIN EN 60 664; DIN EN 61984 |
