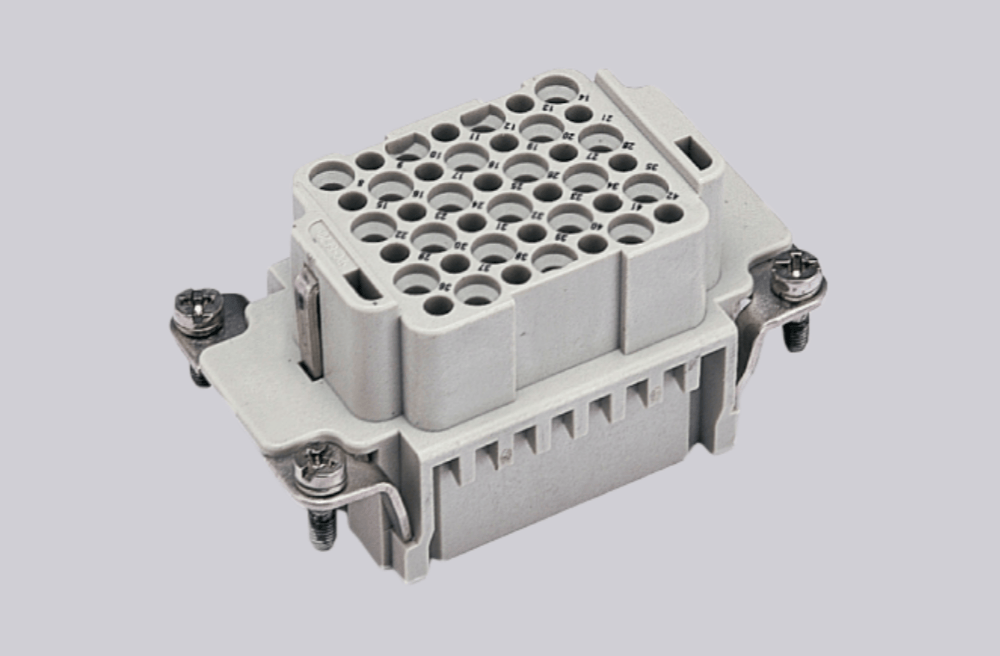

HDD-042-FC | High-Quality Rectangular Connectors

The HDD-042-FC is a high-density heavy-duty connector tailored for scenarios requiring simultaneous power and signal transmission in confined industrial spaces. Featuring 42 contacts, it meets the demand for intensive circuit connection in limited installation areas, making it an ideal choice for equipment that pursues compact design without compromising connection capacity.

It adopts cold-press termination and has a rated voltage of 250V and a rated current of 10A. Crafted with PC fiberglass-reinforced insulation material, the connector achieves UL 94 V-0 flame retardancy. Its rugged structure ensures a minimum of 500 mating cycles, with a contact resistance of no more than 4mΩ and an insulation resistance exceeding 10¹⁰Ω, delivering long-term connection stability. It operates reliably within a temperature range of -40°C to 125°C and resists vibration and moisture effectively.

Equipped with a dedicated screw - connected PE terminal, this connector complies with RoHS standards and offers excellent anti - interference performance. It is widely applied in machine tools, automated assembly lines, textile machinery and packaging equipment, providing a safe and durable connectivity solution that minimizes equipment downtime in harsh industrial environments.

Technical Data
