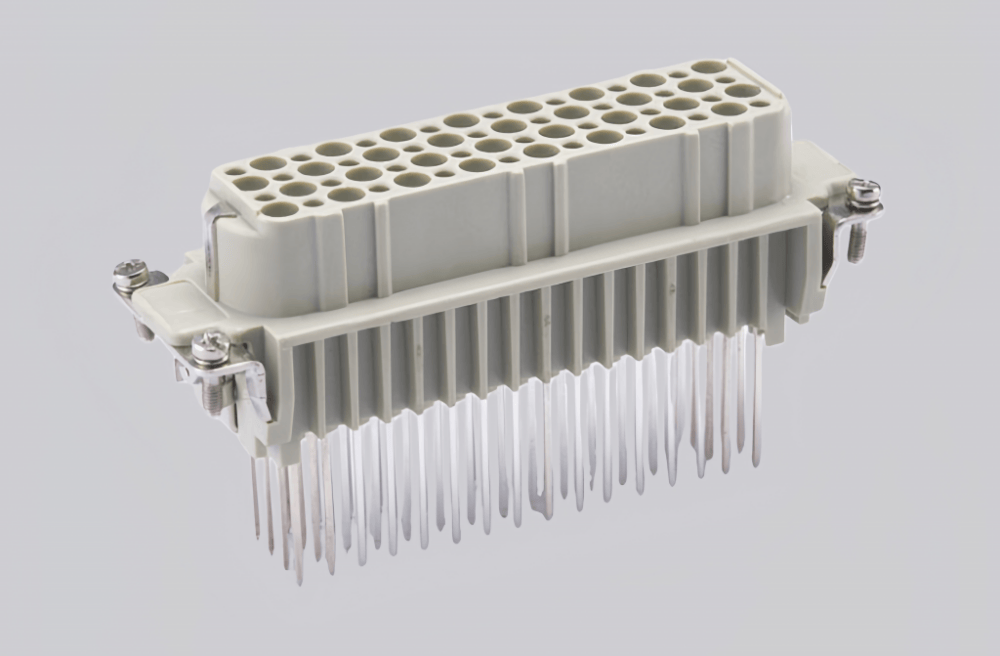

The HD-064-FTHT is a high-density industrial connector specialized in stable simultaneous power and signal transmission. Optimized for 14–26 AWG wire gauges, it comes with 64 positions plus a PE pin, supports a rated voltage of 250V and a reliable current capacity of up to 10A, making it an ideal option for new energy systems, smart control equipment, and high-density wiring scenarios like wind and photovoltaic power setups.
Constructed to perform reliably in complex industrial environments, this connector adopts a rugged housing with excellent structural stability. It is compatible with crimp termination technology, which ensures tight wire connections and resistance to mechanical vibrations. It can maintain steady performance amid temperature fluctuations and dust, meeting the strict wiring requirements of high-precision industrial control systems.
Equipped with a secure mating structure, the HD-064-FTHT enables reliable assembly without complicated tools. This design not only improves wiring accuracy in high-density pin configurations but also avoids loose connections caused by improper operation, effectively enhancing the safety and durability of the entire electrical system for on-site installation and maintenance personnel.

Technical Data
| Number of Connector Pins | 64+PE |
| Rated Current | 10A |
| Rated Voltage | 250V |
| Rated Impulse Voltage | 4KV |
| Pollution Degree | 3 |
| Parameters at Pollution Degree 2 | 10A, 230/400V, 4KV, 2 |
| Rated Voltage (UL/CSA Compliant) | 600V |
| Rated Voltage for CSA Wire Wrapped Connection | 2A, 30V |
| Insulation Resistance | ≥10¹⁰Ω |
| Housing Material | Polycarbonate |
| Operating Temperature Range | -40℃...+125℃ |
| Flammability Rating | V0 |
| Mating Cycles | ≥500 |
| Pin Material | Copper Alloy |
| Pin Surface Treatment | Silver Plating, Gold Plating |
| Contact Resistance | ≤3mΩ |
| Crimp Connection - Wire Gauge | 0.14-2.5mm² |
| Crimp Connection - AWG | 26-14 |
