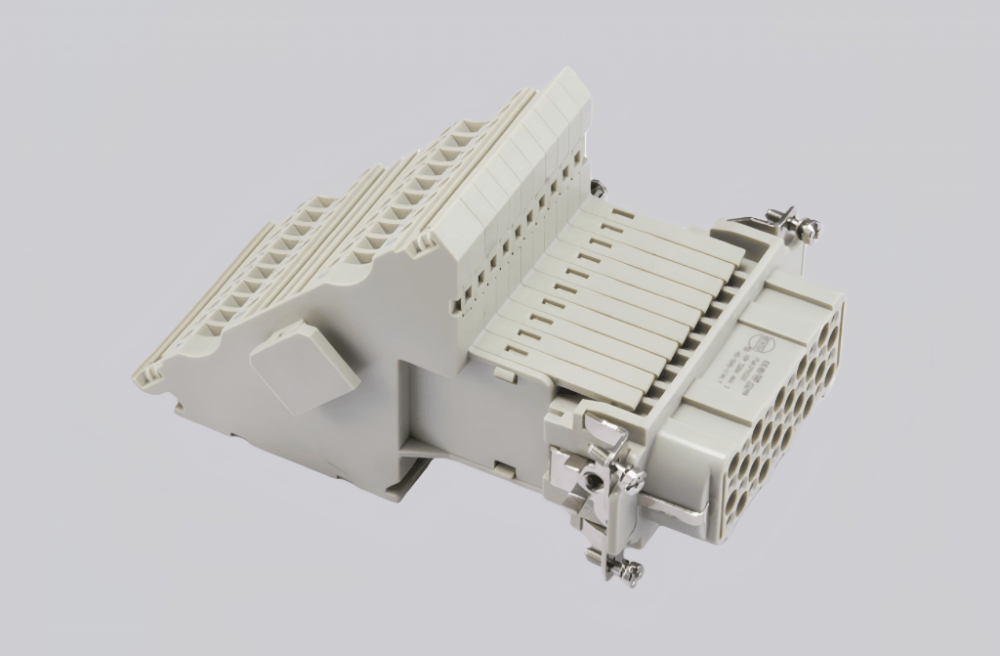

The HD-040-F.AV.R is a high-performance female insert from the HD AV insert series, engineered for reliable power and signal transmission in demanding industrial environments. Featuring a 40-contact configuration with integrated grounding contacts, it provides stable electrical performance and enhanced operational safety for complex connection systems.
Designed with a screw connection mechanism, the HD-040-F.AV.R allows secure and efficient wire termination while simplifying installation and maintenance. It supports wire sizes from 0.14 to 2.5 mm² (26–14 AWG), offering flexibility to meet diverse industrial wiring requirements.
With a rated current of up to 16 A and a rated voltage of 500 V, this insert also offers a rated impulse voltage of 6 kV and pollution degree 3. Its robust and durable construction makes it ideal for automation equipment, machinery, and industrial connector applications that demand long-term reliability and consistent performance.
Technical Data
| Series | HD AV insert series |
| Male / Female | Female |
| Connection type | Screw connection |
| Specifications | 16B / 32B |
| Number of connector contacts | 40 |
| Grounding contacts | Yes |
| Rated current | 10A |
| Rated voltage | 250V |
| Rated voltage as per UL / CSA | 600V |
| Rated pulse voltage | 4KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹ºΩ |
| Working temperature | -40℃…+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Bonding side | Silver-plated |
| Connection side | Tin-plated |
| Contact resistance | ≤10mΩ |
| Tightening / testing torque | 0.5 Nm |
| Standard | DIN EN 60664 / DIN EN 61984 |
