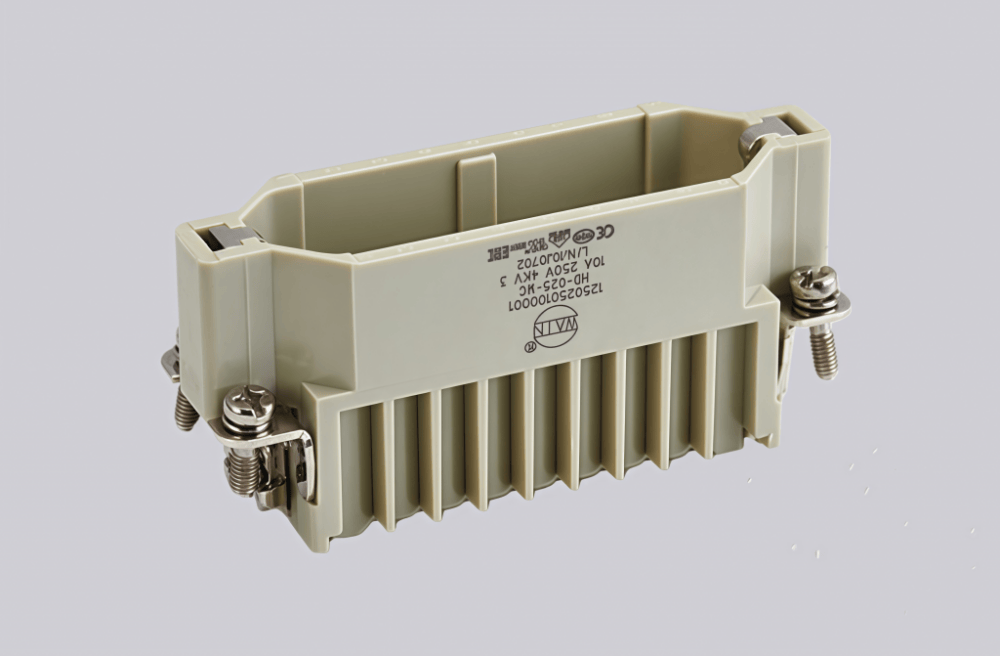

The HD - 025 - MC is a high-performance heavy-duty industrial connector specially designed for high-density power and signal transmission in harsh industrial environments. It features a rugged PC housing with UL94 V0 flame - retardant rating and excellent sealing performance, which can effectively resist dust and moisture erosion, and is suitable for dense automation control systems and various industrial electrical cabinet installations.
Equipped with 25 copper contacts with gold or silver plating, this connector supports a rated current of 10A and a rated voltage of 250V, ensuring stable and low-resistance transmission. With a contact resistance of no more than 3mΩ and a durability of over 500 mating cycles, its corrosion-resistant plated contacts can maintain reliable connectivity in frequent plug - in scenarios, meeting the long-term operation needs of industrial equipment.
It adopts a convenient cold - crimping termination method, compatible with wires ranging from 0.14 to 2.5mm² (26 - 14 AWG). Certified by CQC and CE, the HD - 025 - MC can work stably in the temperature range of - 40°C to 125°C and has an insulation resistance of no less than 10¹⁰Ω, making it a reliable connection option for industrial motors, PLC systems and heavy - duty electrical equipment.
Technical Data
| Series | HD insert series |
| Connection type | Crimp connection |
| Male/female | Male |
| Specifications | 16A、32A |
| Number of connector contacts | 25 |
| Grounding contacts | Yes |
| Rated current | 10A |
| Rated voltage | 250V |
| Rated pulse voltage | 4KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 10A 230/400V 4kV 2 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated、Gold-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Stripping length | 5mm、6mm、8mm |
| Standard | DIN EN 60 664、DIN EN 61984 |
