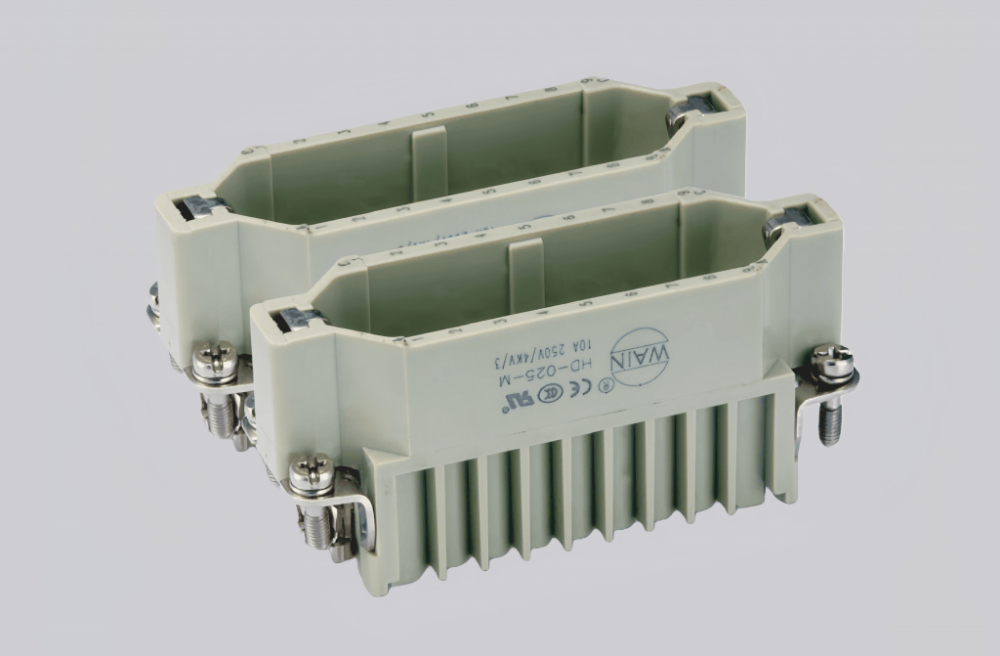

The HD - 025 - MC（Z） is a customized version of the heavy - duty industrial connector, tailored for high - density power and signal transmission in harsh industrial settings. It comes with a rugged metal housing that meets IP65 ingress protection standards, effectively warding off dust, moisture and light mechanical impacts, which makes it suitable for installation in industrial electrical cabinets and dense automation equipment layouts.
This connector is configured with 25 + PE contacts made of copper alloy, available with hard - silver or hard - gold plating. It supports a rated current of 10A and a rated voltage of 250V, with contact resistance less than 3mΩ, ensuring stable and low - resistance electrical transmission. Its anti - corrosion plated contacts enable it to withstand more than 500 mating cycles, maintaining reliable connectivity during frequent plug - in and disconnection operations.
Adopting a cold - crimping termination method, it is compatible with wires ranging from 0.14 to 2.5mm² (26 - 14 AWG). Compliant with IEC 60664 - 1 and IEC 61984 standards as well as CE and RoHS certifications, it can work stably in the temperature range of - 40°C to 125°C, serving as a reliable connection option for industrial motors, PLC systems and heavy - duty automation equipment.
Technical Data
| Series | HD insert series |
| Connection type | Crimp connection |
| Male/female | Male |
| Specifications | 16A、32A |
| Number of connector contacts | 25 |
| Grounding contacts | Yes |
| Rated current | 10A |
| Rated voltage | 250V |
| Rated pulse voltage | 4KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 10A 230/400V 4kV 2 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated、Gold-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Stripping length | 5mm、6mm、8mm |
| Standard | DIN EN 60 664、DIN EN 61984 |
