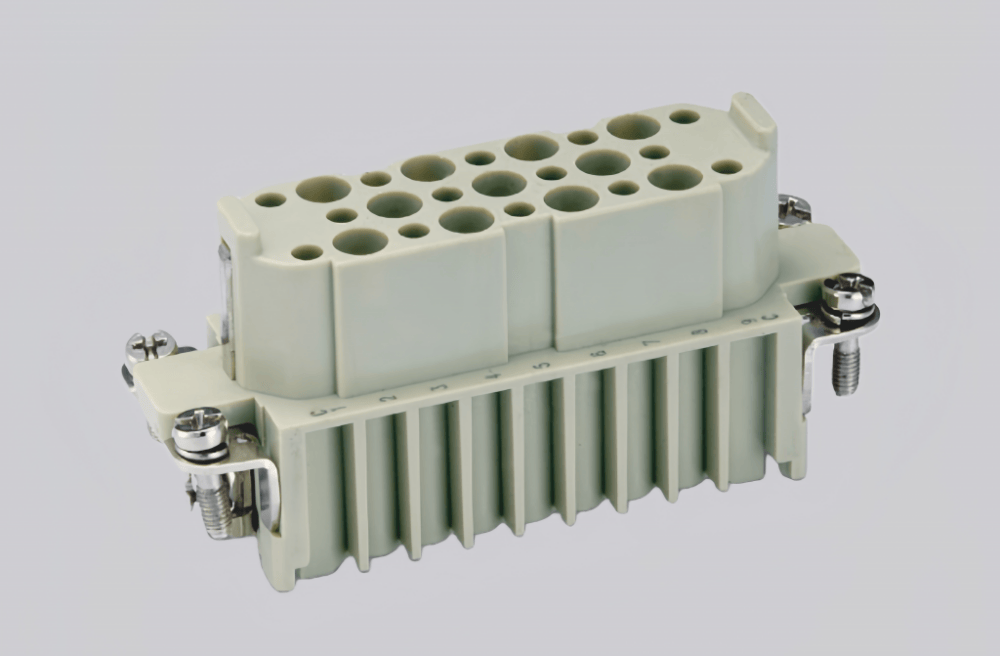

The HD-025-FC is a high-performance industrial connector engineered for high-density power and signal transmission in harsh operating environments. It features a lightweight fiberglass-reinforced polymer housing with IP67 ingress protection, offering robust resistance to dust, moisture, and chemical corrosion, ideal for compact automation control panels and precision industrial instrumentation setups.
Equipped with 25 gold-plated copper alloy contacts, this connector delivers stable 10A current and 250V voltage transmission with contact resistance below 3mΩ. The anti-corrosion plating ensures durability over 500 mating cycles, maintaining reliable connectivity even with frequent plug-in and disconnection operations in demanding industrial scenarios.
Adopting a user-friendly cold-crimping termination method, it is compatible with 0.14–2.5mm² (26–14 AWG) wires and complies with CE and CQC certifications. Rated for operation between -40°C and 125°C, it serves as a dependable connection solution for industrial motors, PLC systems, and heavy-duty servo drive equipment.

Technical Data
| Series | HD insert series |
| Connection type | Crimp connection |
| Male/female | Female |
| Specifications | 16A、32A |
| Number of connector contacts | 25 |
| Grounding contacts | Yes |
| Rated current | 10A |
| Rated voltage | 250V |
| Rated pulse voltage | 4KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 10A 230/400V 4kV 2 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated、Gold-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Stripping length | 5mm、6mm、8mm |
| Standard | DIN EN 60 664、DIN EN 61984 |
