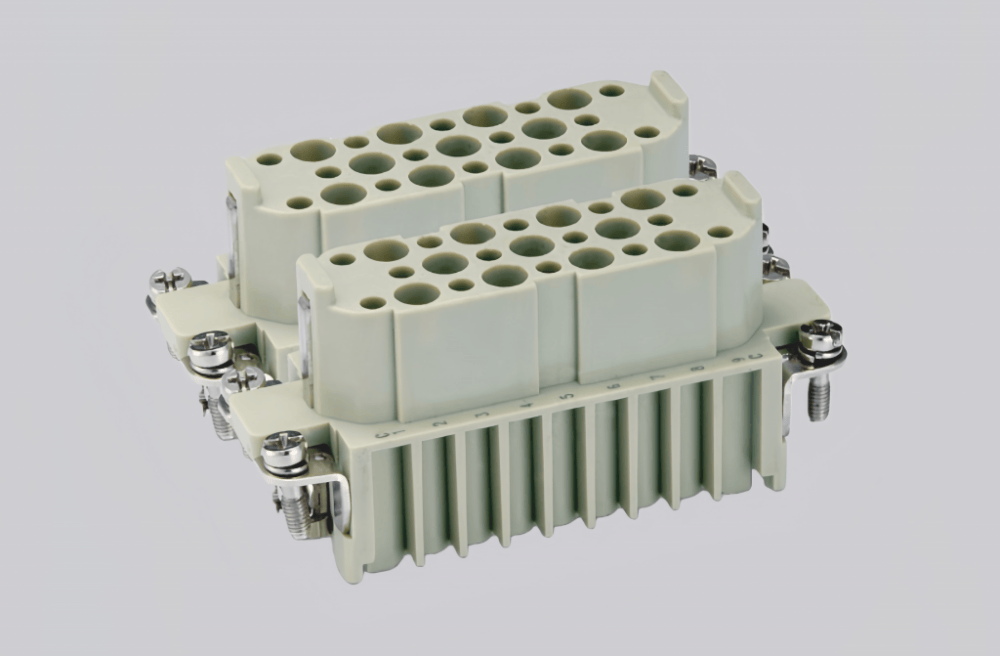

The HD-025-FC(Z) is a customized high-performance industrial connector designed for high-density power and signal transmission in harsh operating environments. It features a durable polycarbonate housing (RAL 7032 light grey) with reliable ingress protection, resisting dust, moisture, and chemical corrosion, ideal for industrial control cabinets and dense automation setups.
Equipped with 25+PE copper alloy contacts (hard-silver or hard-gold plated), it supports 10A current and 250V voltage transmission (600V per UL/CSA) with contact resistance below 3mΩ. The anti-corrosion plating ensures durability over 500 mating cycles, maintaining stable connectivity in frequent plug-in scenarios.
Adopting cold-crimping termination, it is compatible with 0.14–2.5mm² (26–14 AWG) wires and complies with CE, RoHS, and UL 94 V0 flame-retardant standards. Operating stably between -40°C and 125°C with insulation resistance over 10¹⁰Ω, it is a dependable solution for industrial motors, PLC systems, and servo drive equipment.

Technical Data
| Series | HD insert series |
| Connection type | Crimp connection |
| Male/female | Female |
| Specifications | 16A、32A |
| Number of connector contacts | 25 |
| Grounding contacts | Yes |
| Rated current | 10A |
| Rated voltage | 250V |
| Rated pulse voltage | 4KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 10A 230/400V 4kV 2 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated、Gold-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Stripping length | 5mm、6mm、8mm |
| Standard | DIN EN 60 664、DIN EN 61984 |
