HD-007-FC | High-Quality Rectangular Connectors

The HD-007-FC is a compact, high-performance industrial circular connector designed for space-limited harsh working conditions. Built with a lightweight fiberglass-reinforced polymer housing and rated IP67 for ingress protection, it provides strong resistance to dust, moisture, and chemical corrosion, ideal for dense instrumentation setups and portable industrial devices.

Equipped with precision gold-plated contacts, this connector ensures stable, low-resistance current and voltage transmission. The anti-corrosion plating enhances durability and maintains reliable connectivity even through frequent mating and unmating cycles, catering to applications requiring repeated connection operations.

Integrated with a user-friendly push-pull locking mechanism, the HD-007-FC enables tool-free, quick connection and disconnection. Compliant with international industry standards and optimized for miniaturized systems, it is a trusted solution for critical electrical links in robotics, sensor networks, and compact renewable energy components.

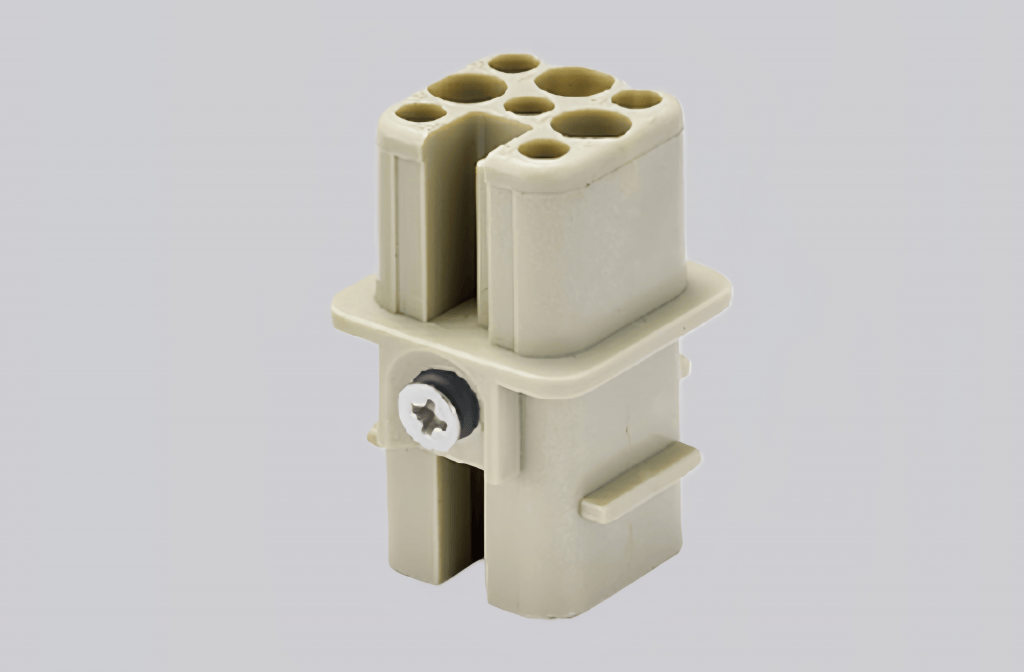

HD-007-FC | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HD insert series
Connection type	Crimp connection
Male/female	Female
Specifications	3A
Number of connector contacts	7
Grounding contacts	Yes
Rated current	10A
Rated voltage	250V
Rated pulse voltage	4KV
Class of pollution	3
Parameters when class of pollution is 2	10A 230/400V 4kV 2
Rated voltage as per UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Working temperature	-40℃...+125℃
Mating cycles	≥500
Inserts material	Polycarbonate
Inserts color	RAL 7032 (light gray)
Flame retardant rating as per UL94	V0
Contact material	Copper alloy
Surface treatment	Silver-plated、Gold-plated
Contact resistance	≤3mΩ
Wire gauge (mm²)	0.14-2.5mm²
Wire gauge (AWG)	26-14 AWG
Stripping length	5mm、6mm、8mm
Standard	DIN EN 60 664、DIN EN 61984
