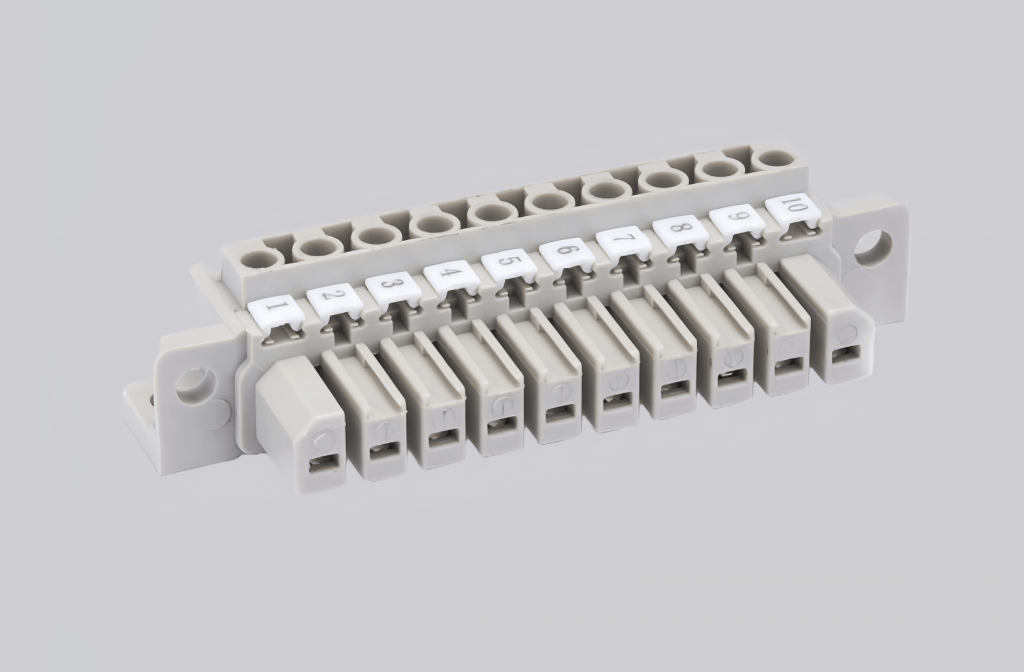

The HCC-010-F is a high-performance connector insert designed to ensure reliable power and signal transmission in demanding industrial environments. It is manufactured with high-quality copper alloy contacts and precision surface plating, providing low contact resistance, excellent electrical conductivity, and stable performance under high current conditions.
Featuring a secure crimp connection design, the HCC-010-F offers strong mechanical retention and effective vibration resistance for long-term operation. Its optimized contact layout and compact structure enable efficient use of installation space while maintaining consistent electrical and mechanical performance.
Engineered to comply with strict industrial standards, the HCC-010-F delivers outstanding durability, wear resistance, and dependable operation in harsh working conditions. It is well suited for industrial automation, power distribution, and equipment connection systems where safety, reliability, and efficiency are essential.
Technical Data
| Series | HCC series |
| Male/female | Female |
| Connection type | Screw connection |
| Number of connector contacts | 10 |
| Grounding contacts | No |
| Rated current | 30A |
| Rated voltage | 500V |
| Rated pulse voltage | 6 kV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹ºΩ |
| Working temperature | -40℃…+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating (UL94) | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤3 mΩ |
| Wire gauge (mm²) | 0.32–4 mm² |
| Wire gauge (AWG) | 22–12 AWG |
| Tightening / testing torque | 0.5 Nm |
| Standard | DIN EN 60664 / DIN EN 61984 |
