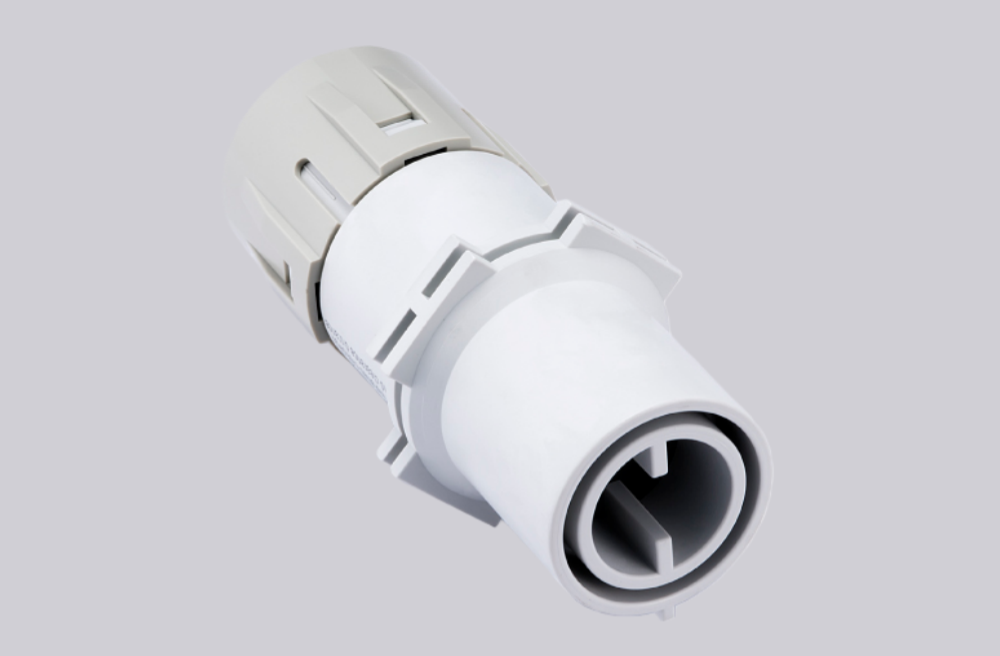

The HC650-FC is a reliable high-capacity connector developed for demanding professional and industrial applications. Its robust and compact design allows secure installation and dependable integration into power distribution and heavy-load electrical systems, ensuring stable operation under challenging conditions.
Manufactured using high-quality materials, the HC650-FC delivers excellent mechanical strength and long-term durability. The optimized internal structure ensures consistent electrical performance and secure connections during continuous operation. Precision engineering helps reduce maintenance requirements while maintaining high reliability and efficiency.
The HC650-FC can function as either a core or supporting component in a wide range of systems. Strict quality control throughout production ensures safety, performance consistency, and long service life. With its balanced combination of capacity, durability, and value, it is an ideal solution for long-term professional use.
Technical Data
| Series | HC Insert Series |
| Male / Female | Female |
| Connection Type | Crimp connection |
| Specifications | 6B / 24B |
| Number of Connector Contacts | 1 |
| Grounding Contacts | No |
| Rated Current | 650 A |
| Rated Voltage | 4 kV / 2 kV |
| Rated Pulse Voltage | 18 kV / 12 kV |
| Class of Pollution | 3 |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Working Temperature | -40℃ to +125℃ |
| Mating Cycles | ≥ 500 |
| Inserts Material | Polyamide |
| Inserts Color | RAL 9002 (Grayish White) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-plated |
| Contact Resistance | ≤ 0.3 mΩ |
| Bayonet Range | Maximum cable diameter: 32 mm |
| Pressure Requirements | 130 kN |
| Wire Gauge (mm²) | 95–240 mm² |
| Stripping Length | 95 mm² → 42 mm 120 mm² → 42 mm 150 mm² → 42 mm 185 mm² → 46 mm 240 mm² → 46 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
