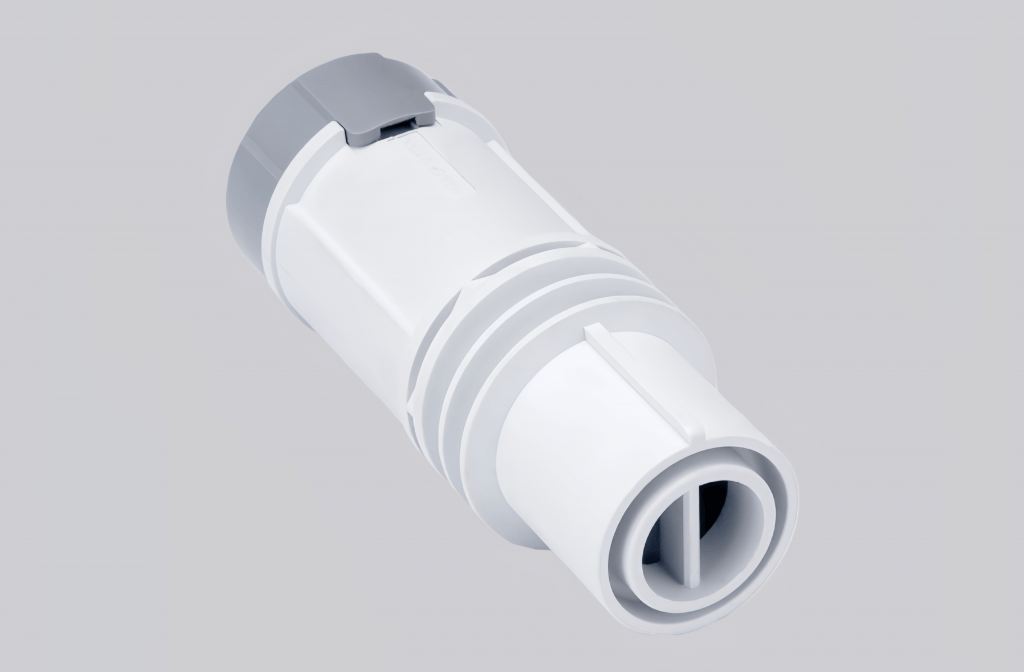

The HC350-FC is a reliable and high-performance connector developed for modern professional and industrial applications. Its compact and robust design allows for secure installation and efficient integration into electrical and power systems, ensuring stable operation in demanding working environments.
Manufactured using high-quality materials, the HC350-FC delivers excellent mechanical strength and long-term durability. The optimized internal structure ensures consistent electrical performance and dependable connections during continuous operation. Precision engineering helps reduce maintenance requirements while maintaining high reliability.
The HC350-FC can function as either a core or supporting component in a wide range of systems. Strict quality control throughout production ensures safety, performance consistency, and long service life. With its balanced combination of efficiency, durability, and reliability, it is an ideal solution for long-term professional use.
Technical Data
| Series | HC Insert Series |
| Male / Female | Female |
| Connection Type | Crimp connection |
| Specifications | 6B / 16B / 24B |
| Number of Connector Contacts | 1 |
| Grounding Contacts | No |
| Rated Current | 350 A |
| Rated Voltage | 4 kV / 2 kV |
| Rated Pulse Voltage | 18 kV / 12 kV |
| Pollution Degree | 3 |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Working Temperature | -40℃ to +125℃ |
| Mating Cycles | ≥ 500 |
| Insert Material | Polyamide |
| Insert Color | RAL 9002 (Grayish White) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-plated |
| Contact Resistance | ≤ 0.3 mΩ |
| Bayonet Range | Maximum cable diameter: 22 mm |
| Pressure Requirements | 130 kN |
| Wire Gauge (mm²) | 35–120 mm² |
| Stripping Length | 35 mm² → 26 mm 50–70 mm² → 28 mm 95 mm² → 30 mm 120 mm² → 24 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
