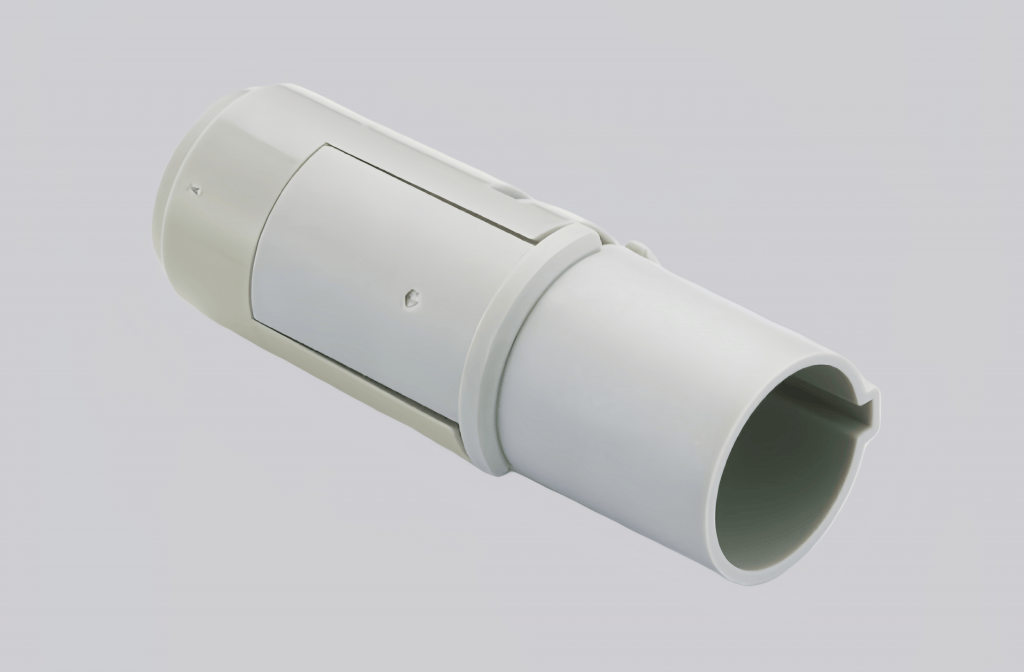

The HC250-MC is a robust and dependable connector designed for modern professional and industrial applications. Its compact and durable construction allows for secure installation and reliable integration into electrical and control systems, ensuring stable performance in demanding working environments.
Manufactured with high-quality materials, the HC250-MC delivers excellent mechanical strength and long-term durability. The optimized internal structure ensures consistent electrical performance and secure connections during continuous operation. Precision engineering helps reduce maintenance requirements while maintaining high reliability.
The HC250-MC can serve as a core or supporting component in a wide range of systems. Each unit is produced under strict quality control standards to ensure safety, performance consistency, and long service life. With its balanced combination of strength, efficiency, and reliability, it is an ideal solution for long-term professional use.
Technical Data
| Series | HC Insert Series |
| Male / Female | Male |
| Connection Type | Crimp connection |
| Specifications | 16B / 24B |
| Number of Connector Contacts | 1 |
| Grounding Contacts | No |
| Rated Current | 250 A |
| Rated Voltage | 2 kV |
| Rated Pulse Voltage | 12 kV |
| Pollution Degree | 3 |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Working Temperature | -40℃ to +125℃ |
| Mating Cycles | ≥ 500 |
| Insert Material | Polyamide |
| Insert Color | RAL 7032 (Light Gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-plated |
| Contact Resistance | ≤ 0.3 mΩ |
| Bayonet Range | Maximum cable diameter: 18 mm |
| Pressure Requirements | 130 kN |
| Wire Gauge (mm²) | 35–70 mm² |
| Wire Gauge (AWG) | 2–00 AWG |
| Stripping Length | 22 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
