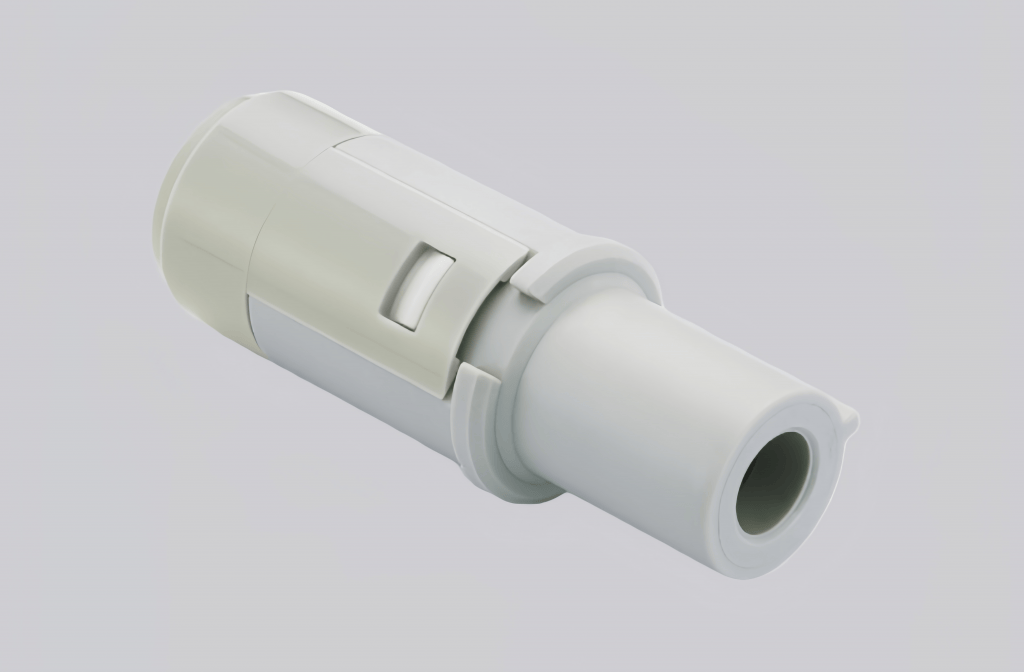

The HC250-FC is a reliable and high-performance connector designed for modern professional and industrial applications. Its compact yet robust construction allows for secure installation and efficient integration into electrical and control systems, ensuring stable operation in demanding environments.
Manufactured with high-quality materials, the HC250-FC offers excellent mechanical strength and long-term durability. The optimized internal design ensures consistent electrical performance and dependable connections during continuous operation. Precision engineering helps minimize maintenance requirements while maintaining high reliability.
The HC250-FC can be used as a core or supporting component in a wide range of systems. Each unit is produced under strict quality control standards to ensure safety, performance consistency, and long service life. With its balanced combination of efficiency, durability, and reliability, it is well suited for long-term professional use.
Technical Data
| Series | HC Insert Series |
| Male / Female | Female |
| Connection Type | Crimp connection |
| Specifications | 16B / 24B |
| Number of Connector Contacts | 1 |
| Grounding Contacts | No |
| Rated Current | 250 A |
| Rated Voltage | 2 kV |
| Rated Pulse Voltage | 12 kV |
| Pollution Degree | 3 |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Working Temperature | -40℃ to +125℃ |
| Mating Cycles | ≥ 500 |
| Insert Material | Polyamide |
| Insert Color | RAL 7032 (Light Gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-plated |
| Contact Resistance | ≤ 0.3 mΩ |
| Bayonet Range | Maximum cable diameter: 18 mm |
| Pressure Requirements | 130 kN |
| Wire Gauge (mm²) | 35–70 mm² |
| Wire Gauge (AWG) | 2–00 AWG |
| Stripping Length | 22 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
