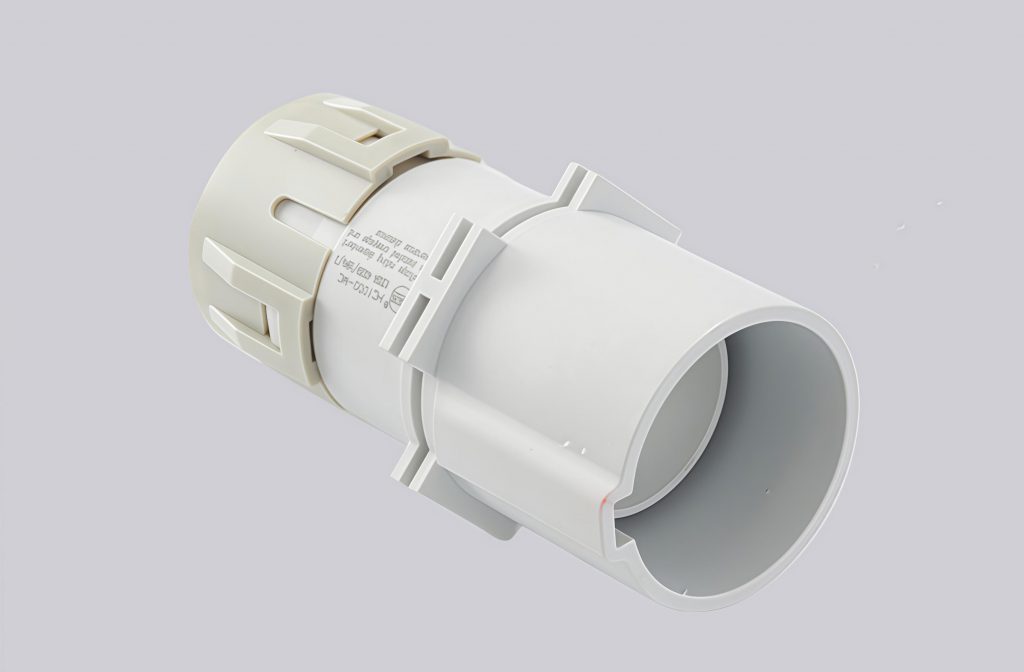

The HC1000-MC is a robust and high-performance connector designed for demanding professional and industrial applications. Its compact yet durable construction allows for secure installation and reliable integration into complex electrical and power systems, ensuring stable operation under heavy-duty conditions.
Manufactured with premium-quality materials, the HC1000-MC delivers excellent mechanical strength and long-term durability. The optimized internal design ensures consistent electrical performance and secure connections during continuous operation. Precision engineering helps reduce maintenance requirements while maintaining high reliability.
The HC1000-MC can serve as a core or supporting component in a wide range of systems. Each unit is produced under strict quality control standards to ensure safety, performance consistency, and long service life. With its balanced combination of strength, efficiency, and reliability, it is an ideal solution for long-term professional use.
Technical Data
| Series | HC Insert Series |
| Male / Female | Male |
| Connection Type | Crimp connection |
| Specifications | HP1T |
| Number of Connector Contacts | 1 |
| Grounding Contacts | No |
| Rated Current | 1000 A |
| Rated Voltage | 4000 V |
| Rated Pulse Voltage | 18 kV |
| Pollution Degree | 3 |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Working Temperature | -40℃ to +125℃ |
| Mating Cycles | ≥ 500 |
| Insert Material | Polyamide |
| Insert Color | RAL 9002 (Grayish White) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-plated |
| Contact Resistance | ≤ 0.3 mΩ |
| Wire Gauge (mm²) | 300 mm² |
| Standard | DIN EN 60664 / DIN EN 61984 |
