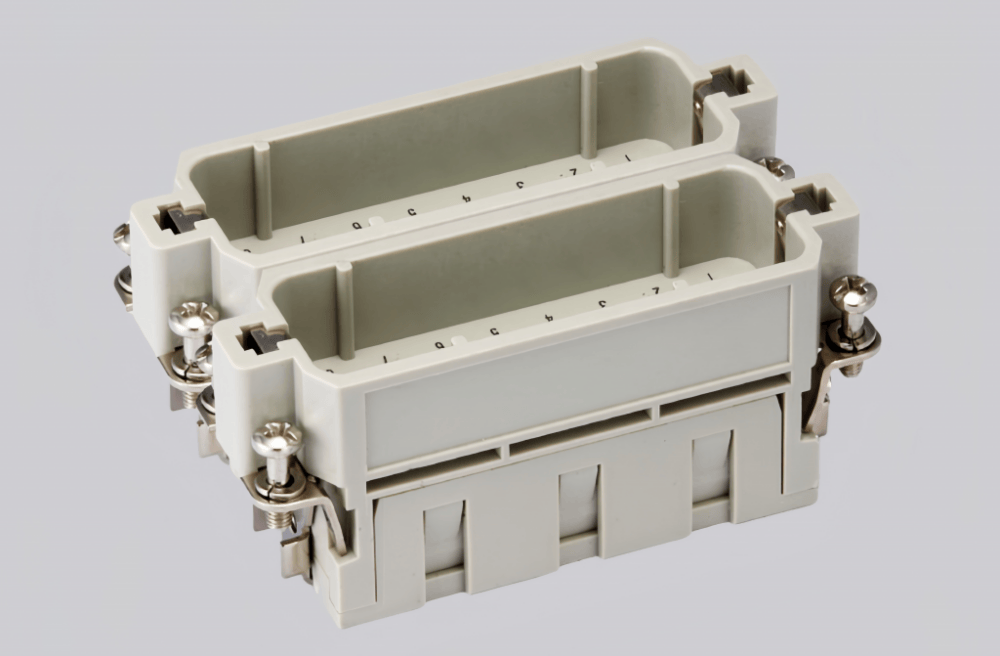

The HA-016-MC(17-32) industrial connector is a high-density, cost-effective component engineered for stable multi-channel signal and power transmission in harsh industrial settings. It features a sturdy die-cast zinc alloy housing with IP67 ingress protection, effectively shielding against dust, splash water, and temperature fluctuations ranging from -45°C to 130°C.
Equipped with 16 enhanced gold-plated contacts, it ensures minimal contact resistance (<12mΩ), complies with IEC 61076-2-101 standards, and supports a rated current of 8A per contact and voltage of 250V AC/DC.
Its precision cam-lock mechanism enables tool-free, secure mating in seconds, reducing installation time and operational downtime. Compact, durable, and space-saving, this connector is the optimal choice for complex automation systems, industrial communication devices, and high-density indoor sensor networks.
Technical Data
| Series | HA insert series |
| Connection type | Crimp connection |
| Male/female | Male |
| Specifications | 16A, 32A |
| Number of connector contacts | 16 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 250V |
| Rated pulse voltage | 4KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 10A 230/400V 4kV 2 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated, Gold-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.14-4.0mm² |
| Wire gauge (AWG) | 26-12 AWG |
| Stripping length | 7.5mm |
| Standard | DIN EN 60 664, DIN EN 61984 |
