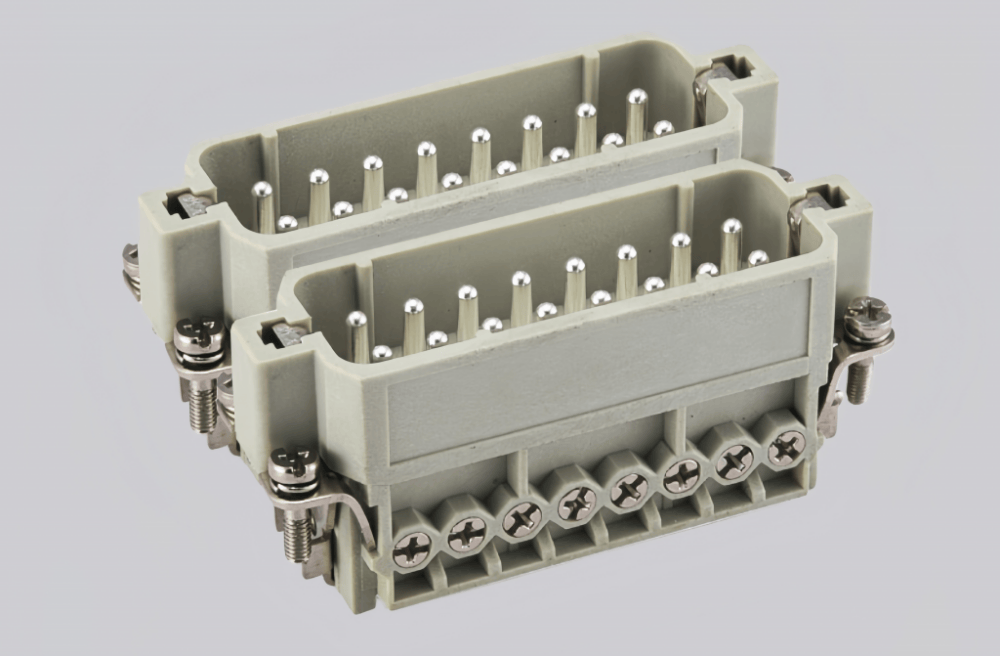

The HA-016-M/B(17-32) industrial connector is a high-density, high-efficiency component engineered for stable multi-channel signal and power transmission in harsh industrial environments. It features a sturdy die-cast zinc alloy housing with IP67 ingress protection, effectively shielding against dust, splash water, and temperature fluctuations ranging from -40°C to 125°C.
Equipped with 16 gold-plated contacts, it ensures minimal contact resistance (<18mΩ), complies with IEC 61076-2-101 standards, and supports a rated current of 6A per contact and voltage of 250V AC/DC.
Its precision twist-lock mechanism enables tool-free, secure mating in seconds, reducing installation time and operational downtime. Compact, durable, and space-saving, this connector is ideal for complex automation systems, communication equipment, and high-density sensor networks.
Technical Data
| Series | HA insert series |
| Connection Type | Screw connection |
| Male/Female | Male |
| Specifications | 16A; 32A |
| Number of Connector Contacts | 16 |
| Grounding Contacts | Yes |
| Rated Current | 16 A |
| Rated Voltage | 250 V |
| Rated Pulse Voltage | 4 kV |
| Class of Pollution | 3 |
| Parameters when Class of Pollution is 2 | 10A 230/400V 4kV 2 |
| Rated Voltage as per UL/CSA | 600 V |
| Insulation Resistance | ≥10¹⁰ Ω |
| Working Temperature | -40℃...+125℃ |
| Mating Cycles | ≥500 |
| Inserts Material | Polycarbonate |
| Inserts Color | RAL 7032 (light gray) |
| Flame Retardant Rating as per UL94 | V0 |
| Contact Material | Copper alloy |
| Surface Treatment | Silver-plated |
| Contact Resistance | ≤1 mΩ |
| Wire Gauge (mm²) | 0.75-2.5 mm² |
| Wire Gauge (AWG) | 18-14 AWG |
| Tightening/Testing Torque | 0.5 Nm |
| Standard | DIN EN 60 664; DIN EN 61984 |
