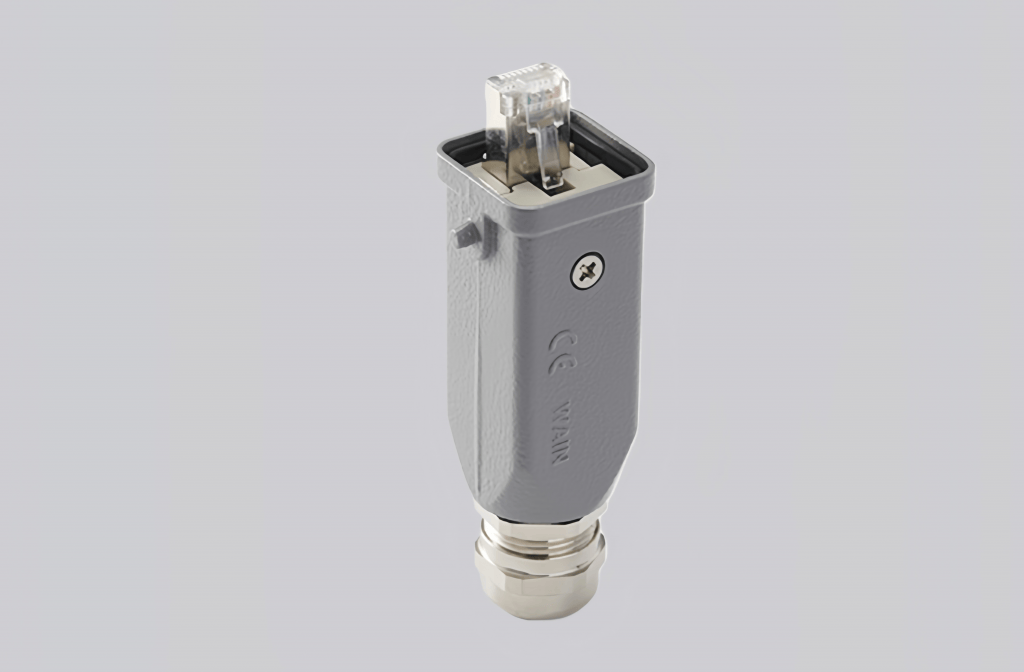

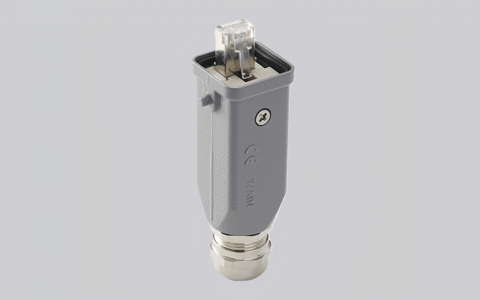

The H3A-TE/S-2B-M20-RJ45/M Cat.6a is a heavy-duty industrial RJ45 connector designed for reliable high-speed data transmission in demanding environments. Fully compliant with Cat.6a standards, it supports up to 10 Gigabit Ethernet, ensuring stable performance, excellent signal integrity, and low crosstalk for industrial communication networks.
This connector features a robust metal housing and an M20 cable gland, providing secure cable entry, effective strain relief, and enhanced protection against vibration, dust, and moisture. The shielded RJ45 male interface offers strong EMC protection, ensuring dependable data transmission even in environments with high electromagnetic interference.
The H3A-TE/S-2B-M20-RJ45/M Cat.6a is ideal for industrial automation, control systems, transportation, and smart manufacturing applications. With its durable construction, reliable electrical performance, and easy installation, it is a dependable solution for industrial Ethernet connections requiring high speed and long-term stability.
Technical Data
| Series | Inserts |
| Product Category | H3A RJ45 |
| Number of connector contacts | 8 |
| Transmission Characteristics | Category 6, up to 500 MHz |
| Standard | ISO/IEC 11801:2002; EN 50173-1 |
| Transmission Rate | 10/100/1000 Mbit/s, 10 Gbit/s |
| Cable termination | Via piercing contacts |
| Shield | 360-degree full shielding contact |
| Working temperature | -25℃ … +85℃ |
| Housing material | Die casting zinc |
| Housing color | RAL 7037 (field gray) |
| Protection rating | IP65 |
| Mating cycles | ≥500 |
