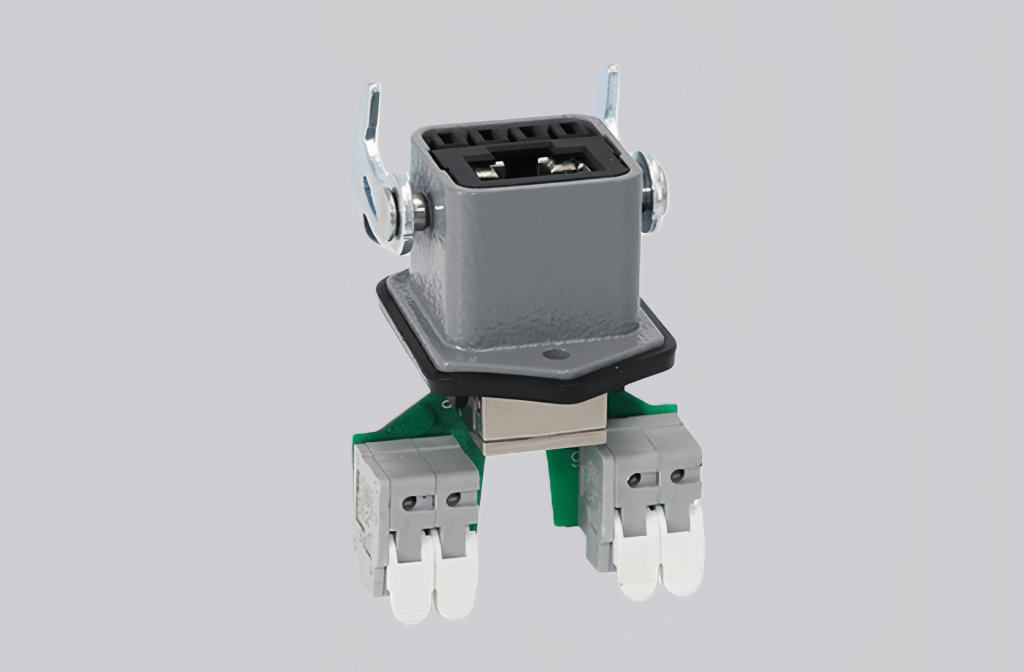

The H3A-BK-1L/W-004/RJ45-F is an industrial-grade RJ45 connector designed to provide reliable and stable Ethernet connectivity in industrial applications. Featuring an RJ45 female interface, it ensures secure data transmission for control systems, automation equipment, and industrial communication networks.
Built with a durable heavy-duty housing, this connector offers strong mechanical protection and long-term reliability. The shielded design improves resistance to electromagnetic interference, while the compact structure allows for efficient installation in control cabinets and industrial devices where space is limited.
The H3A-BK-1L/W-004/RJ45-F is well suited for industrial automation, machinery, factory networking, and equipment integration. Combining robust construction, dependable electrical performance, and ease of installation, it is a reliable solution for industrial Ethernet connections requiring durability and consistent operation.

Technical Data
| Series | Inserts |
| Product Category | H3A RJ45 |
| Number of connector contacts | 4 (Data Pins) + 4 (Power Pins) |
| Transmission Characteristics | Category 6, up to 500 MHz |
| Standard | ISO/IEC 11801:2002; EN 50173-1 |
| Transmission Rate | 10/100/1000 Mbit/s, 10 Gbit/s |
| Cable termination | Power connection (electric) |
| Shield | 360-degree full shielding contact |
| Rated current | 16 A |
| Rated voltage | 48 V |
| Rated pulse voltage | 0.8 kV |
| Wire gauge (mm²) | 0.34–4.0 mm² |
| Wire gauge (AWG) | 24–12 AWG |
| Working temperature | -25℃ … +70℃ |
| Housing material | Die casting zinc |
| Housing color | RAL 7037 (field gray) |
| Protection rating | IP65 |
| Mating cycles | ≥500 |
