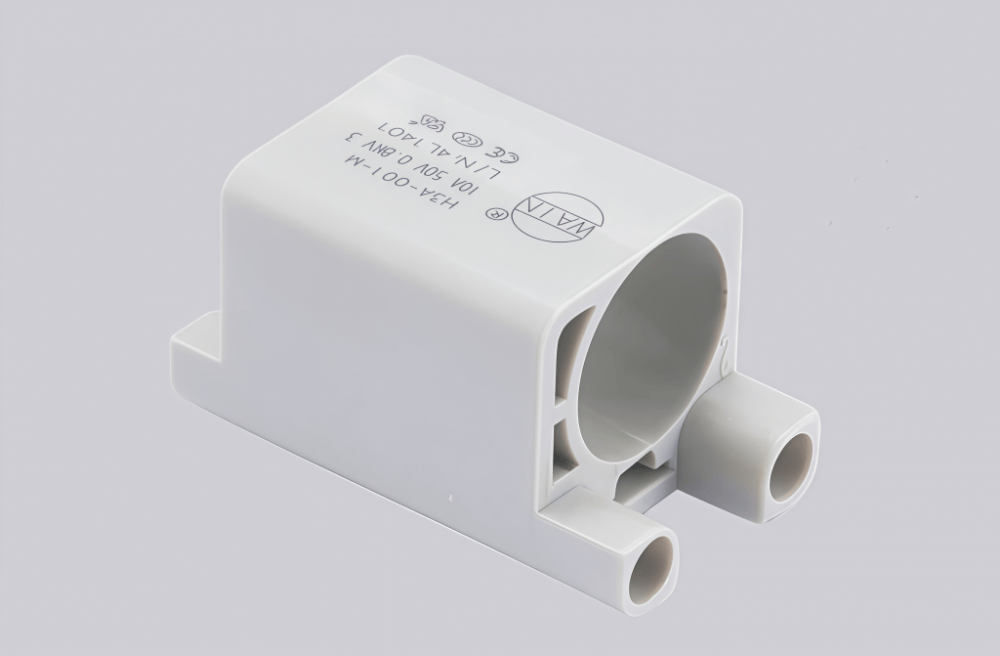

The H3A-001-M is a rugged industrial connector built for reliable signal and power transmission in harsh operating conditions. Crafted with high-grade industrial materials, it maintains consistent performance across industrial automation, heavy-duty machinery, and outdoor instrumentation, withstanding extreme temperatures (-40°C to 130°C), vibration, and chemical exposure.
Equipped with IP67 dustproof and waterproof protection, the connector integrates a secure locking mechanism to avoid accidental disconnection. Its gold-plated contacts minimize signal loss and enhance corrosion resistance, extending service life and reducing maintenance requirements while adhering to international industrial standards for seamless system integration.
This cost-effective, durable solution excels in mission-critical applications demanding uninterrupted connectivity, making it a trusted choice for rigorous industrial scenarios.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Crimp connection |
| Male/female | Male |
| Number of connector contacts | 1 |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+85℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Zinc alloy |
| Surface treatment | Gold-plated |
| Contact resistance | ≤4mΩ |
| Maximum cable diameter | 3-9.5mm |
