H2MVC-002-FC | High-Quality Rectangular Connectors

The H2MVC-002-FC is a high-performance industrial circular connector engineered for harsh-environment applications in automation, power distribution, and industrial control systems. Featuring an IP68-sealed rugged housing, it provides superior protection against dust, water immersion, and extreme vibration, ensuring stable operation across temperatures from -40°C to +125°C.

Equipped with a 2-pin configuration and crimp termination, this connector delivers secure electrical connections rated at 30A/400V AC. Its gold-plated contacts minimize contact resistance for optimal signal and power integrity, while the corrosion-resistant stainless steel shell enhances durability, supporting over 15,000 mating cycles for long-term, low-maintenance reliability.

Compatible with standard industrial mounting protocols, the H2MVC-002-FC enables tool-assisted installation for efficient assembly. Compliant with global safety and electromagnetic compatibility (EMC) standards, it combines robust construction with precise performance, making it an ideal choice for critical power and signal transmission in demanding industrial settings.

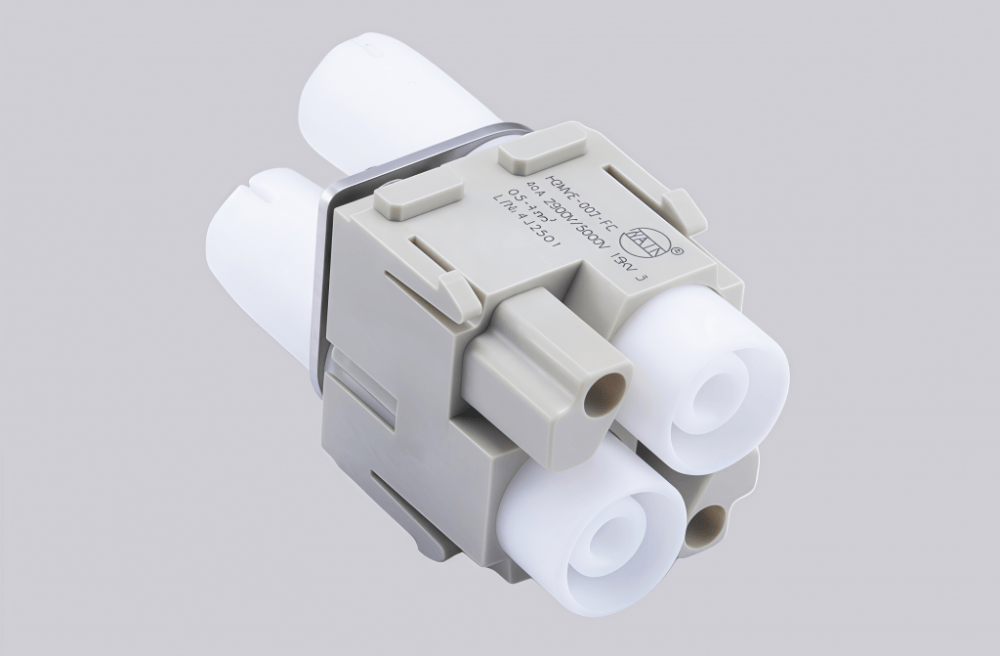

H2MVC-002-FC | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HM modular insert series
Module size	Dual module
Connection type	Crimp connection
Male/female	Female
Number of connector contacts	2
Rated current	40A
Rated voltage	2900V/5000V
Rated pulse voltage	15KV
Class of pollution	3
Insulation resistance	≥10¹⁰Ω
Working temperature	-40℃...+125℃
Mating cycles	≥500
Inserts material	Polycarbonate
Inserts color	RAL 7032 (light gray)
Flame retardant rating as per UL94	V0
Contact material	Copper alloy
Surface treatment	Silver-plated
Contact resistance	≤1mΩ
Wire gauge (mm²)	1.5-10mm²
Wire gauge (AWG)	16-8 AWG
Maximum cable diameter	9mm
Stripping length	- (Not specified)
Standard	DIN EN 60 664; DIN EN 61984
