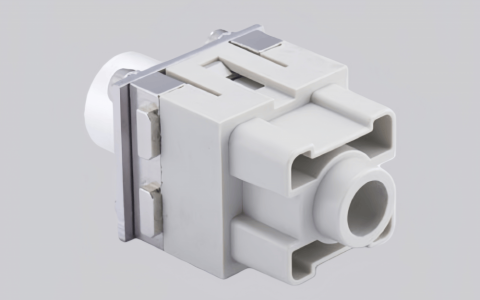

The H2MKPE-001.2-M industrial connector is specifically designed for 40-70MM² heavy-duty cables, featuring precise cable termination compatibility to meet high-power transmission requirements. It complies with industrial connectivity standards, ensuring secure mating and stable signal integrity for demanding electrical systems.
Engineered with rugged, corrosion-resistant materials, the connector delivers exceptional mechanical durability and reliable environmental sealing. It maintains low contact resistance even under high current loads, withstanding extreme temperatures, moisture, dust, and vibration in harsh industrial settings while enabling straightforward installation and maintenance.
Ideal for power distribution networks, industrial machinery, renewable energy (solar/wind) installations, and heavy-duty equipment, this connector offers proven performance for critical applications. Its 40-70MM² cable compatibility and strict quality control validate its value as a trusted industrial connectivity solution.
Technical Data
| Series | HM modular insert series |
| Module size | Dual module |
| Connection type | Axial bolt connection |
| Male/female | Male |
| Number of connector contacts | 1 |
| Rated current | 200A |
| Rated voltage | 1000V |
| Rated pulse voltage | 8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | 0.2mΩ |
| Wire gauge (mm²) | 40-70mm² |
| Tightening/testing torque | 50mm²→9Nm; 70mm²→10Nm |
| Stripping length | 16mm |
| Standard | DIN EN 60664; DIN EN 61984 |
