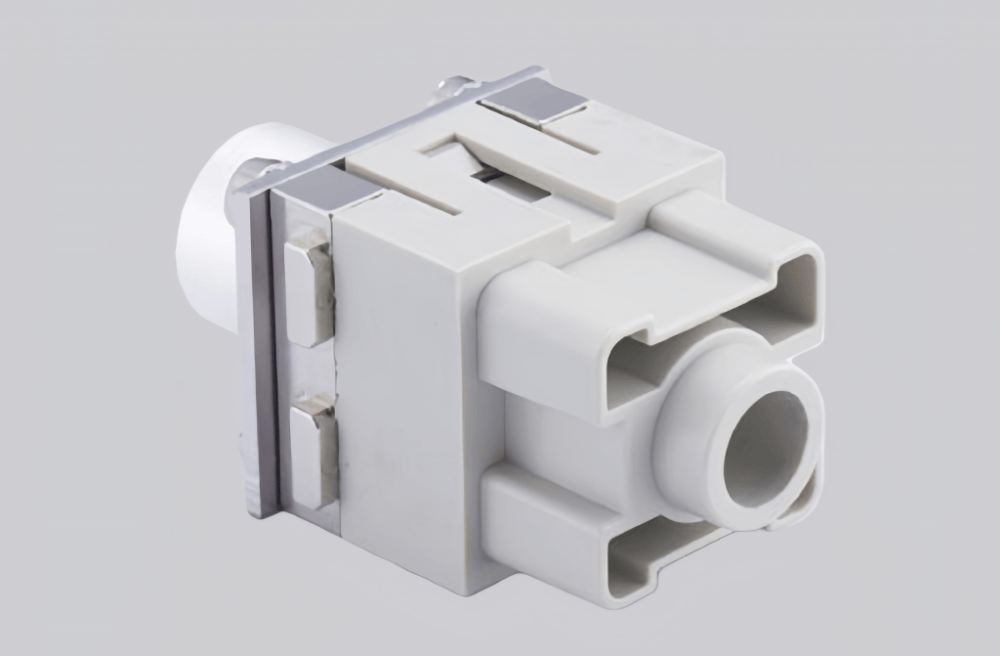

The H2MKPE-001.2-F industrial connector is tailored for 40-70MM² heavy-duty cables, featuring a precision-engineered contact structure optimized for high-current applications. It adheres to industrial connectivity standards, ensuring secure cable termination and consistent power/signal transmission with low contact resistance.
Constructed from rugged, corrosion-resistant materials, the connector offers exceptional mechanical strength and IP-rated environmental sealing. It withstands extreme temperatures, moisture, dust, and vibration, maintaining reliable performance in harsh industrial conditions while enabling easy installation and maintenance.
Ideal for power distribution systems, industrial machinery, renewable energy installations, and heavy equipment, this connector delivers durable, high-performance connections for critical applications. Its compatibility with 40-70MM² cables and strict quality control make it a trusted choice for industrial connectivity needs.
Technical Data
| Series | HM modular insert series |
| Module size | Dual module |
| Connection type | Axial bolt connection |
| Male/female | Female |
| Number of connector contacts | 1 |
| Rated current | 200A |
| Rated voltage | 1000V |
| Rated pulse voltage | 8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | 0.2mΩ |
| Wire gauge (mm²) | 40-70mm² |
| Tightening/testing torque | 50mm²→9Nm; 70mm²→10Nm |
| Stripping length | 16mm |
| Standard | DIN EN 60664; DIN EN 61984 |
