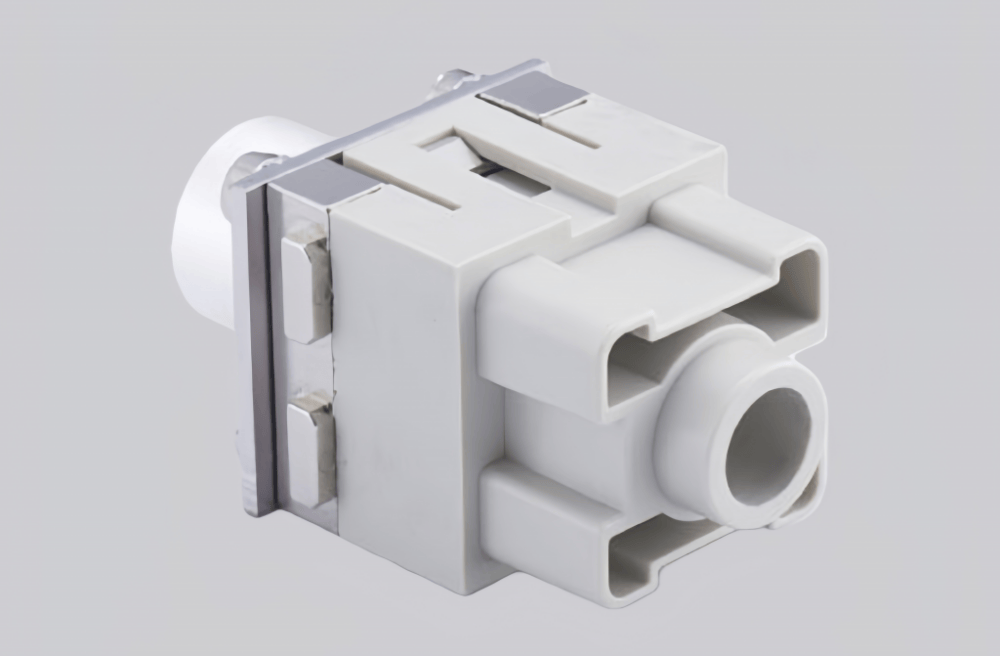

The H2MKPE-001.1-F industrial connector is precision-engineered for 25-40MM² heavy-duty cables, tailored to mid-range power transmission requirements in industrial settings. It features optimized contact geometry and secure termination design, ensuring consistent conductivity and reliable signal transmission for demanding electrical systems.
Crafted from high-grade corrosion-resistant materials, the connector offers exceptional mechanical robustness and IP-rated environmental protection. It maintains low contact resistance under continuous operation, withstanding extreme temperatures, moisture, dust, and vibration in harsh industrial environments while enabling efficient installation and maintenance.
Ideal for power distribution networks, industrial automation equipment, renewable energy installations, and heavy machinery, it delivers durable, long-lasting connections for critical applications. Its 25-40MM² cable compatibility and strict quality control make it a trusted, cost-effective industrial connectivity solution.
Technical Data
| Series | HM modular insert series |
| Module size | Dual module |
| Connection type | Axial bolt connection |
| Male/female | Female |
| Number of connector contacts | 1 |
| Rated current | 200A |
| Rated voltage | 1000V |
| Rated pulse voltage | 8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | 0.2mΩ |
| Wire gauge (mm²) | 25-40mm² |
| Tightening/testing torque | 25mm²→8Nm; 35mm²→8Nm |
| Stripping length | 16mm |
| Standard | DIN EN 60664; DIN EN 61984 |
