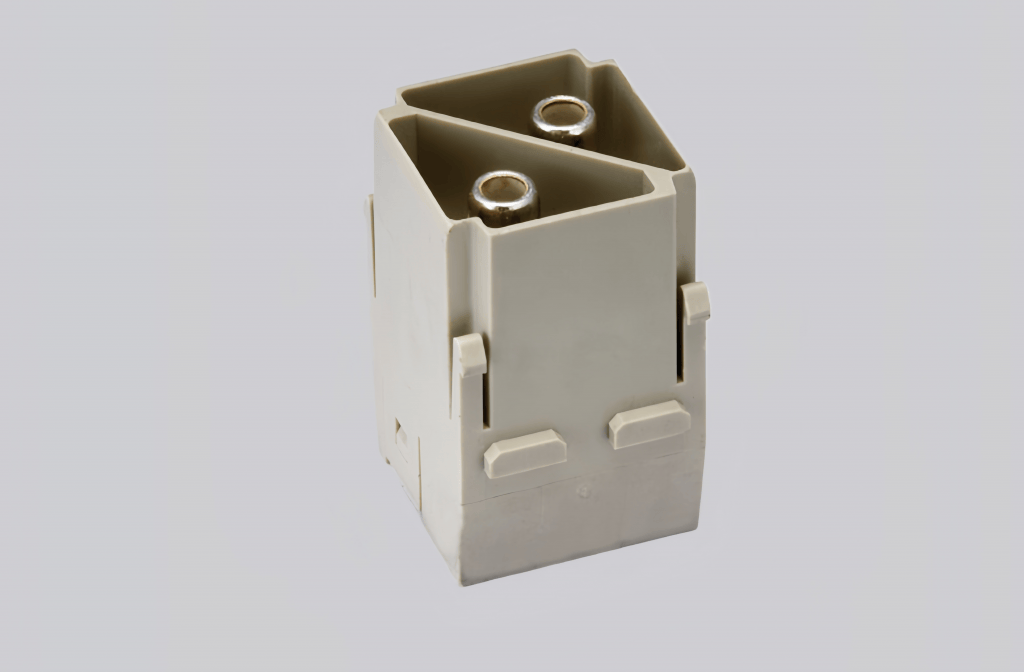

The H2MK-002.2-M (16-35MM²) is a high-performance industrial connector optimized for 16-35MM² wire compatibility, delivering stable signal and power transmission. Crafted from rugged industrial-grade materials, it excels in heavy-duty machinery, power distribution systems, and industrial automation, thriving in harsh operational settings.
Operating reliably within -40°C to 125°C, it meets UL 94 V0 flame-retardant standards, resisting vibration, chemical corrosion, and dust. Equipped with a secure locking mechanism and high-conductivity contacts, it ensures 500+ mating cycles and minimal signal loss, complying with EN 61984, CE, and ROHS for seamless integration.
This durable, cost-effective solution offers robust anti-interference performance for mission-critical applications, reducing maintenance costs. It’s a trusted choice for industries demanding long-term stability in rigorous conditions.
Technical Data
| Series | HM modular insert series |
| Module size | Dual module |
| Connection type | Axial bolt connection |
| Male/female | Male |
| Number of connector contacts | 2 |
| Rated current | 100A |
| Rated voltage | 1000V |
| Rated pulse voltage | 8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | 0.3mΩ |
| Wire gauge (mm²) | 16-35mm² |
| Tightening/testing torque | 16mm²→6Nm; 25mm²→7Nm; 35mm²→8Nm |
| Stripping length | 13mm |
| Standard | DIN EN 60664, DIN EN 61984 |
