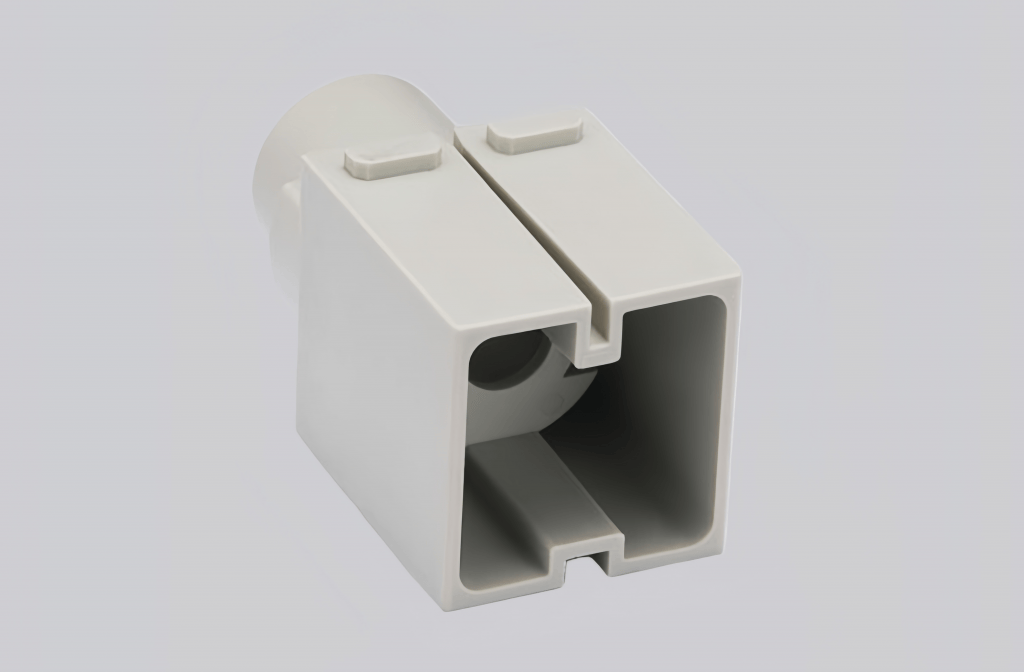

The H2MK-001-MC is a high-performance industrial connector designed for reliable signal and power transmission in harsh operating conditions. Built with rugged, industrial-grade materials, it delivers consistent performance across industrial automation, heavy-duty machinery, and outdoor instrumentation, withstanding extreme temperatures (-40°C to 130°C), vibration, and chemical exposure.
Featuring IP67 dustproof and waterproof protection, the connector is equipped with a secure locking mechanism to prevent accidental disconnection. Its gold-plated contacts ensure minimal signal loss and strong corrosion resistance, extending service life and reducing maintenance costs while complying with international industrial standards for seamless system integration.
This cost-effective solution excels in mission-critical applications requiring uninterrupted connectivity, making it a trusted choice for demanding industrial scenarios.
Technical Data
| Series | HM modular insert series |
| Module size | Dual module |
| Connection type | Crimp connection |
| Male/female | Male |
| Number of connector contacts | 1 |
| Rated current | 200A |
| Rated voltage | 1000V |
| Rated pulse voltage | 8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤0.3mΩ |
| Wire gauge (mm²) | 25-70mm² |
| Maximum cable diameter | 18mm |
| Stripping length | 22.5mm |
| Standard | DIN EN 60664; DIN EN 61984 |
