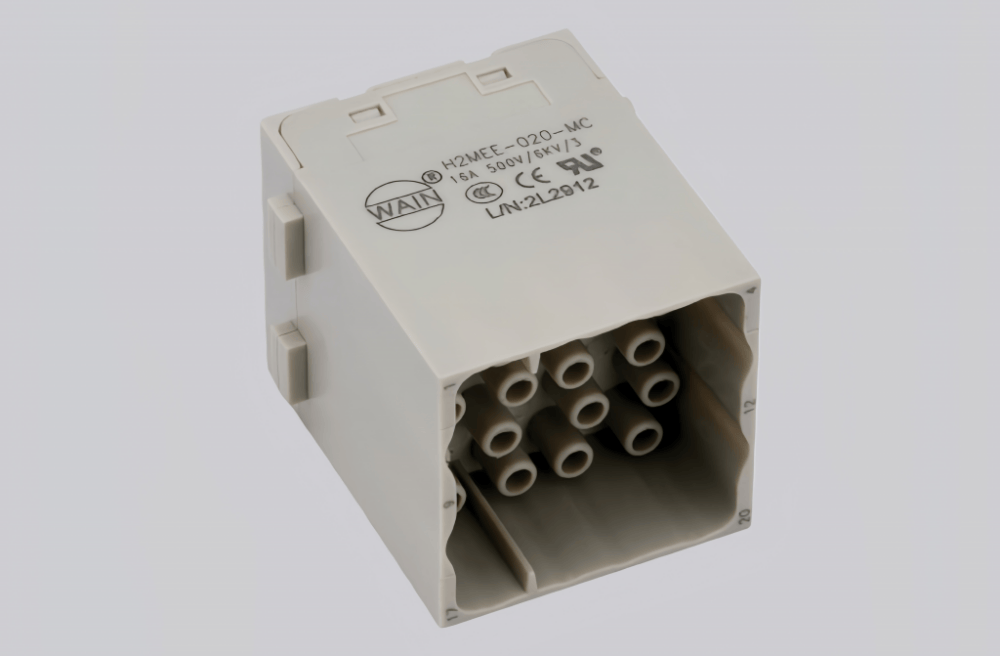

The H2MEE-020-MC is a high-performance industrial connector engineered for reliable signal and power transmission in harsh environments. With a compact, rugged design, it supports stable connectivity for industrial automation, robotics, and instrumentation systems, ensuring consistent performance under extreme temperatures (-40°C to 125°C) and vibration.
Featuring IP67 waterproof and dustproof protection, this connector offers secure mating with a locking mechanism to prevent accidental disconnection. Its gold-plated contacts minimize signal loss and corrosion, extending service life and reducing maintenance needs. Compatible with standard industry protocols, it integrates seamlessly into existing setups.
Ideal for factory floors, outdoor equipment, and critical control systems, the H2MEE-020-MC delivers durability, efficiency, and cost-effectiveness. It meets international quality standards, making it a trusted choice for demanding industrial applications requiring uninterrupted operation.

Technical Data
| Series | HM modular insert series |
| Module size | Dual module |
| Connection type | Crimp connection |
| Male/female | Male |
| Number of connector contacts | 20 |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6kV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated; Gold-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.14-4mm² |
| Wire gauge (AWG) | 26-12 AWG |
| Maximum cable diameter | 4.5mm |
| Stripping length | 7.5mm |
| Standard | DIN EN 60664; DIN EN 61984 |
