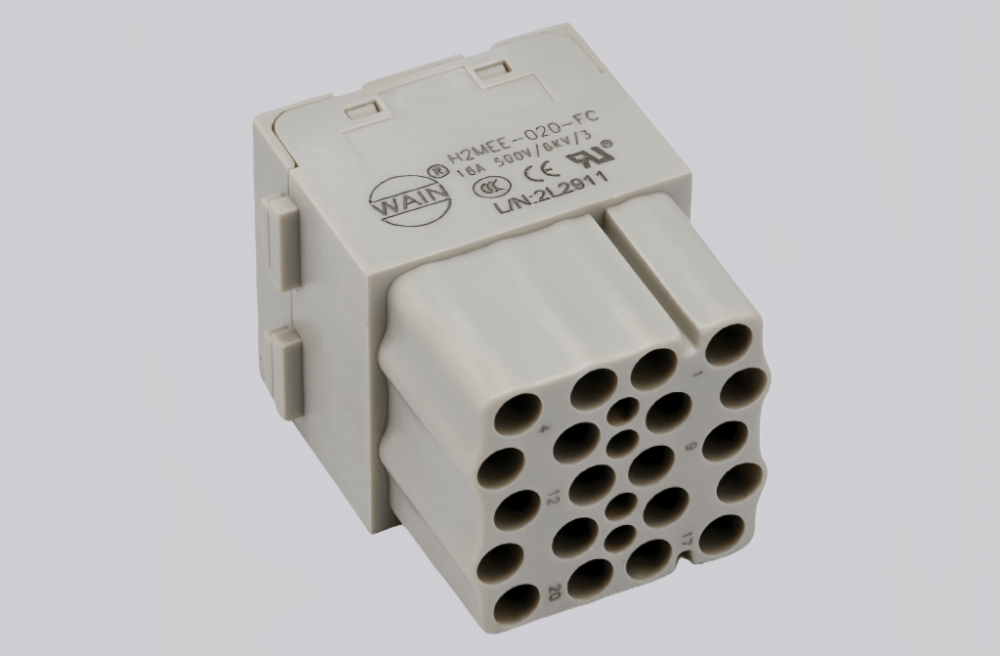

The H2MEE-020-FC industrial connector is precision-manufactured with tight dimensional tolerances, ensuring accurate mating and stable transmission for industrial control systems. It offers broad compatibility with standard industrial interfaces and diverse cable specifications, adapting seamlessly to multi-scenario application needs.
Equipped with advanced anti-interference technology, it effectively shields electromagnetic interference to maintain signal integrity in complex industrial environments. Crafted from high-strength, corrosion-resistant materials, it boasts exceptional durability, withstanding extreme temperatures, vibration, dust, and moisture for long-term reliable operation.
Ideal for factory automation, process control equipment, industrial communication systems, and instrumentation, it delivers core value through precise performance and robust adaptability. Its combination of precision engineering, wide compatibility, anti-interference capability, and ruggedness makes it a trusted choice for critical industrial connectivity.
Technical Data
| Series | HM modular insert series |
| Module size | Dual module |
| Connection type | Crimp connection |
| Male/female | Female |
| Number of connector contacts | 20 |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6kV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated; Gold-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.14-4mm² |
| Wire gauge (AWG) | 26-12 AWG |
| Maximum cable diameter | 4.5mm |
| Stripping length | 7.5mm |
| Standard | DIN EN 60664; DIN EN 61984 |
