H2MDD-042-MC | High-Quality Rectangular Connectors

The H2MDD-042-MC industrial connector is engineered for reliable performance in harsh industrial environments, ideal for factory automation, robotics, renewable energy systems, and automotive manufacturing. Its rugged construction ensures exceptional durability and corrosion resistance, with robust protection against dust, moisture, and vibration to thrive in demanding operational conditions.

Designed for practicality and efficiency, this connector delivers stable signal transmission and superior electrical conductivity. Its compact form factor enables seamless integration into tight spaces, while the ergonomic locking mechanism supports tool-free installation. Compatibility with standard industrial protocols further simplifies setup and minimizes maintenance costs.

Rigorously tested to withstand extreme temperatures and high-pressure scenarios, the H2MDD-042-MC guarantees long-term reliability. By reducing unplanned downtime and optimizing operational workflows, it serves as a versatile, high-performance solution that combines cutting-edge engineering with user-centric functionality—elevating your industrial connectivity to new levels of efficiency.

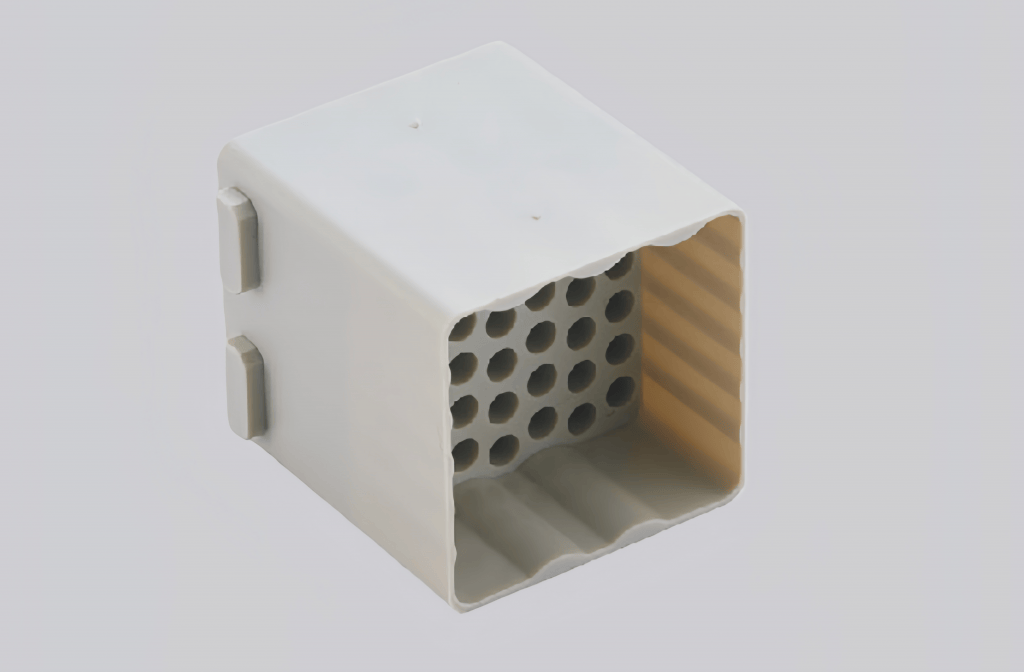

H2MDD-042-MC | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HM modular insert series
Module size	Dual module
Connection type	Crimp connection
Male/female	Male
Number of connector contacts	42
Rated current	10A
Rated voltage	150V
Rated pulse voltage	2.5KV
Class of pollution	3
Insulation resistance	≥10¹⁰Ω
Working temperature	-40℃...+125℃
Mating cycles	≥500
Inserts material	Polycarbonate
Inserts color	RAL 7032 (light gray)
Flame retardant rating as per UL94	V0
Contact material	Copper alloy
Surface treatment	Silver-plated; Gold-plated
Contact resistance	≤3mΩ
Wire gauge (mm²)	0.14-2.5mm²
Wire gauge (AWG)	26-14 AWG
Maximum cable diameter	3.5mm
Stripping length	6-8mm
Standard	DIN EN 60664; DIN EN 61984
