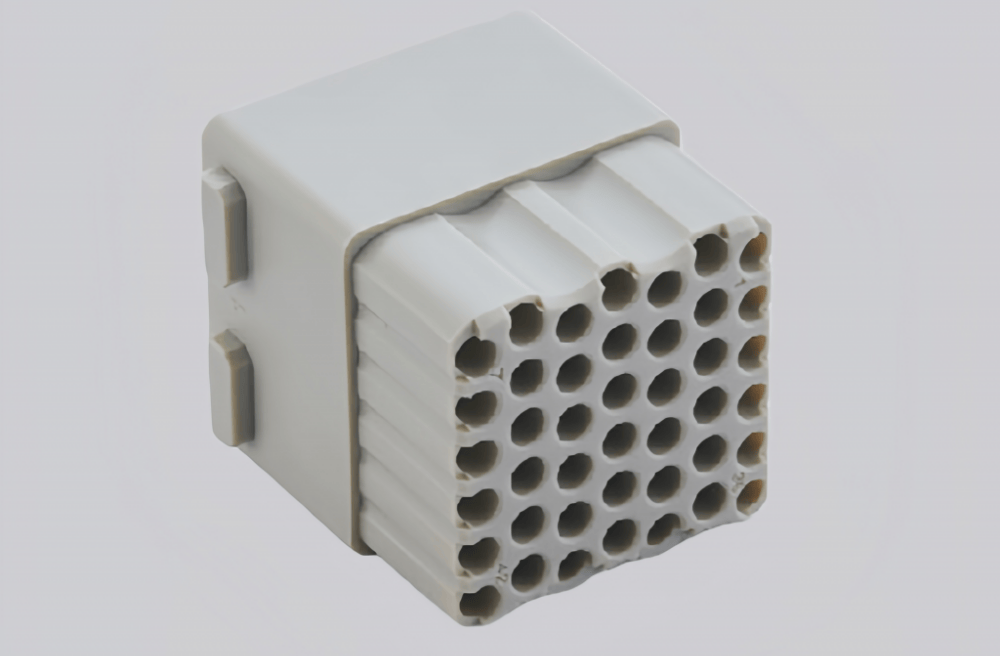

The H2MDD-042-FC industrial connector is tailored for seamless integration across core industrial scenarios—factory automation, robotics, renewable energy, and automotive manufacturing. Built to thrive in harsh operating conditions, it boasts ruggedized housing that resists corrosion, dust, and moisture, ensuring uncompromised performance in extreme temperatures and high-vibration environments.
At its core, the connector delivers industry-leading durability and stable signal transmission, supported by precision-engineered contacts for consistent electrical conductivity. Its compact design fits tight installations, while the tool-free ergonomic locking mechanism simplifies assembly and reduces maintenance time, aligning with efficient industrial workflows.
Engineered for long-term reliability, this connector minimizes downtime and operational costs, making it a high-value choice for critical applications. Compatibility with standard industrial protocols enhances versatility, combining robust performance with user-centric practicality to elevate your industrial connectivity infrastructure.
Technical Data
| Series | HM modular insert series |
| Module size | Dual module |
| Connection type | Crimp connection |
| Male/female | Female |
| Number of connector contacts | 42 |
| Rated current | 10A |
| Rated voltage | 150V |
| Rated pulse voltage | 2.5KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated; Gold-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Maximum cable diameter | 3.5mm |
| Stripping length | 6-8mm |
| Standard | DIN EN 60664; DIN EN 61984 |
