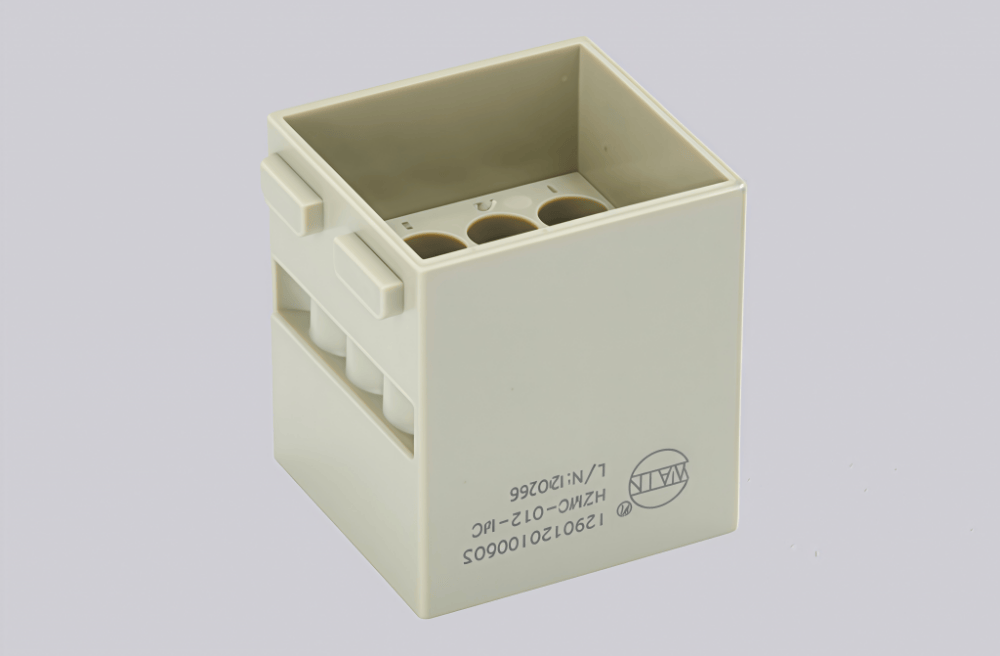

The H2MC-012-MC is a premium industrial connector designed to deliver uncompromising reliability for critical power and signal transmission. Boasting IP67 waterproof and dustproof sealing, it withstands extreme temperatures (-40°C to +125°C), heavy vibration, and chemical exposure, ensuring consistent performance in harsh industrial settings.
Equipped with 12 high-quality contacts rated for 16A/500V AC/DC, it enables efficient power distribution and stable signal integrity. The connector features a secure quick-locking mechanism for tool-free, hassle-free installation and maintenance. Constructed from corrosion-resistant, flame-retardant materials, it complies with UL, IEC, and RoHS standards, ensuring long service life and operational safety.
Ideal for industrial automation, robotics, renewable energy systems, and heavy-duty machinery, it offers exceptional adaptability to diverse application requirements.
Technical Data
| Series | HM modular insert series |
| Module size | Dual module |
| Connection type | Crimp connection |
| Male/female | Male |
| Number of connector contacts | 12 |
| Rated current | 1.5A |
| Rated voltage | 50V |
| Rated pulse voltage | 0.8kV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Gold-plated |
| Contact resistance | ≤10mΩ |
| Standard | DIN EN 60664, DIN EN 61984 |
