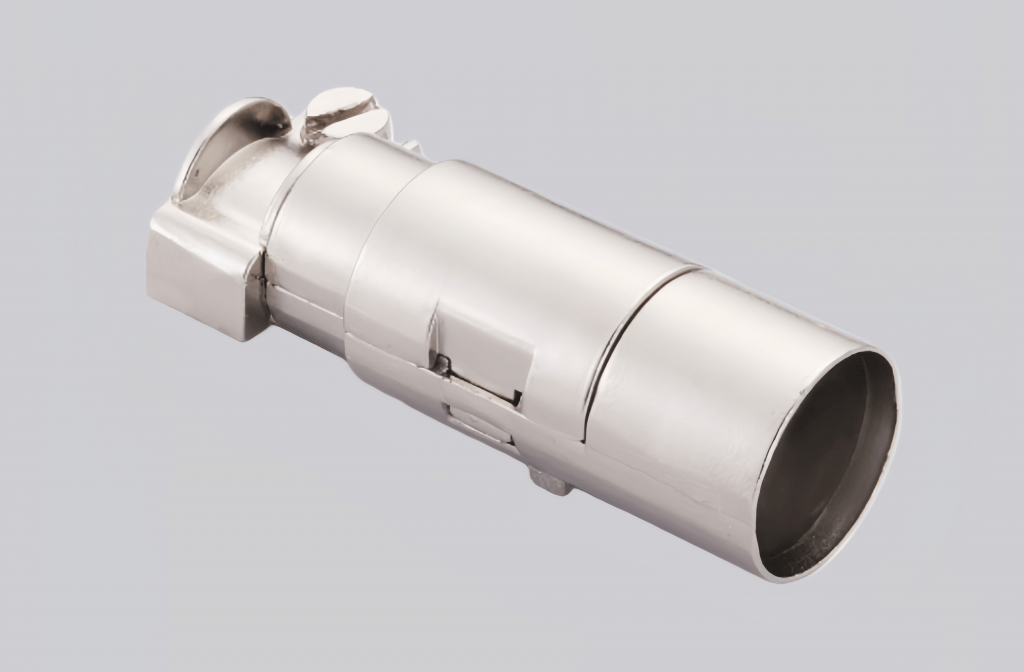

The EMC-004-MC is a high-reliability industrial connector engineered for stable signal and power transmission in harsh operating environments. Constructed with rugged industrial-grade materials, it delivers consistent performance across industrial automation, heavy-duty machinery, and outdoor equipment, withstanding extreme temperatures (-40°C to 130°C), intense vibration, and chemical corrosion.
Featuring IP67 waterproof and dustproof protection, this connector integrates a secure locking mechanism to prevent accidental disconnection. Its gold-plated contacts ensure minimal signal loss and superior corrosion resistance, extending service life and reducing maintenance costs while complying with international industrial standards for seamless system integration.
This durable, cost-effective solution excels in mission-critical applications requiring uninterrupted connectivity, making it a trusted choice for demanding industrial scenarios where reliability and stability are non-negotiable.
Technical Data
| Series | HM modular insert series |
| Module size | Dual module |
| Connection type | Crimp connection |
| Male/female | Male |
| Number of connector contacts | 4+shield |
| Rated current | 10A |
| Rated voltage | 50V |
| Rated pulse voltage | 0.8kv |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+85℃ |
| Mating cycles | ≥500 |
| Insulation materials | Polycarbonate |
| Outer conductor material | Zinc alloy |
| Outer conductor surface | Nickel |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Gold-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Standard | DIN EN 60664, DIN EN 61984 |
