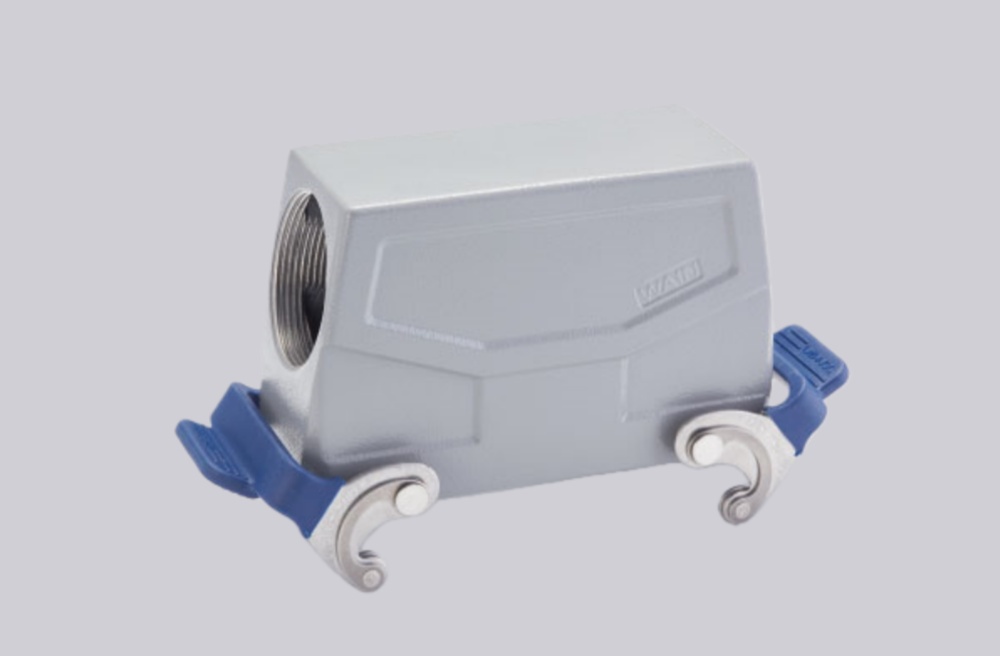

The W24B-SEH-2L/SC-M40 is a metal housing designed for industrial connector applications where dependable EMC performance and mechanical stability are required. Its surface-mount design with a secure locking structure supports reliable installation in demanding working environments.
Made from die-cast aluminum, the housing provides good mechanical strength and corrosion resistance. The M40 threaded outlet allows connection with larger-diameter industrial cables, offering flexibility for different wiring requirements.
With a passivated surface finish and an IP67 protection rating, the W24B-SEH-2L/SC-M40 is suitable for use in environments where dust, moisture, and harsh conditions are present.
Technical Data
| Series | Classic regular housing |
| Specifications | 24B |
| Housing type | Surface mounting upper housing |
| Outgoing method | Side outlet |
| Locking type | Dual lock |
| Thread | M40 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP67 |
