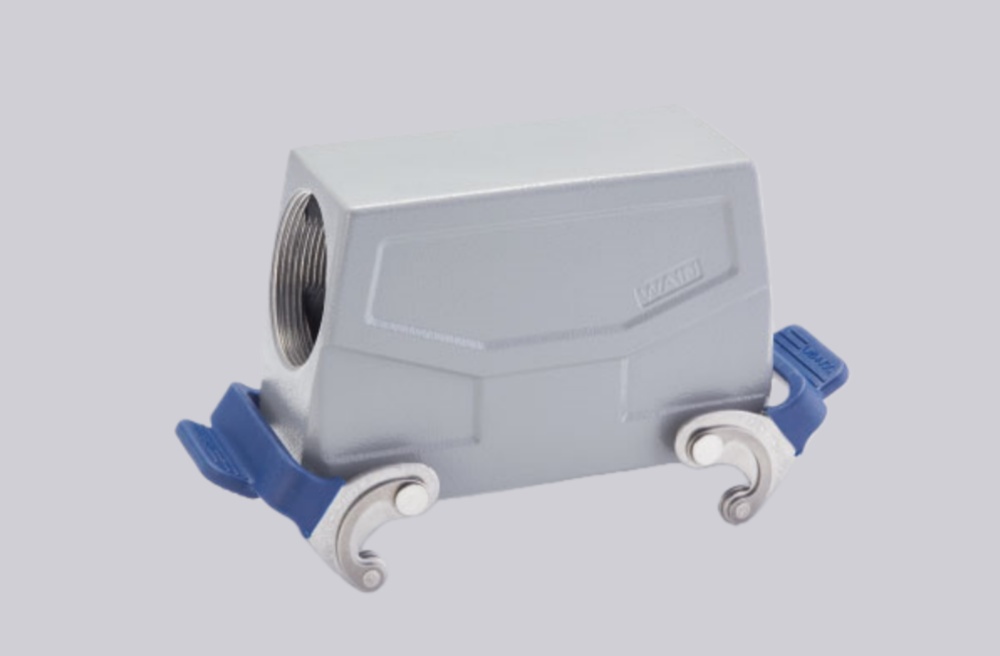

The W24B-SEH-2L/SC-M32 is a compact metal housing intended for industrial connector applications where stable EMC performance and mechanical reliability are required. Its surface-mount structure combined with a dual-locking system helps ensure firm installation in demanding operating conditions.
Manufactured from die-cast aluminum, the housing delivers solid structural strength along with good resistance to corrosion. The M32 threaded outlet supports standard industrial cable interfaces, offering flexibility in system integration.
With passivated surface treatment and an IP67 protection rating, the W24B-SEH-2L/SC-M32 is well suited for environments exposed to dust, moisture, and other harsh external factors.
Technical Data
| Series | Classic regular housing |
| Specifications | 24B |
| Housing type | Surface mounting upper housing |
| Outgoing method | Side outlet |
| Locking type | Dual lock |
| Thread | M32 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP67 |
