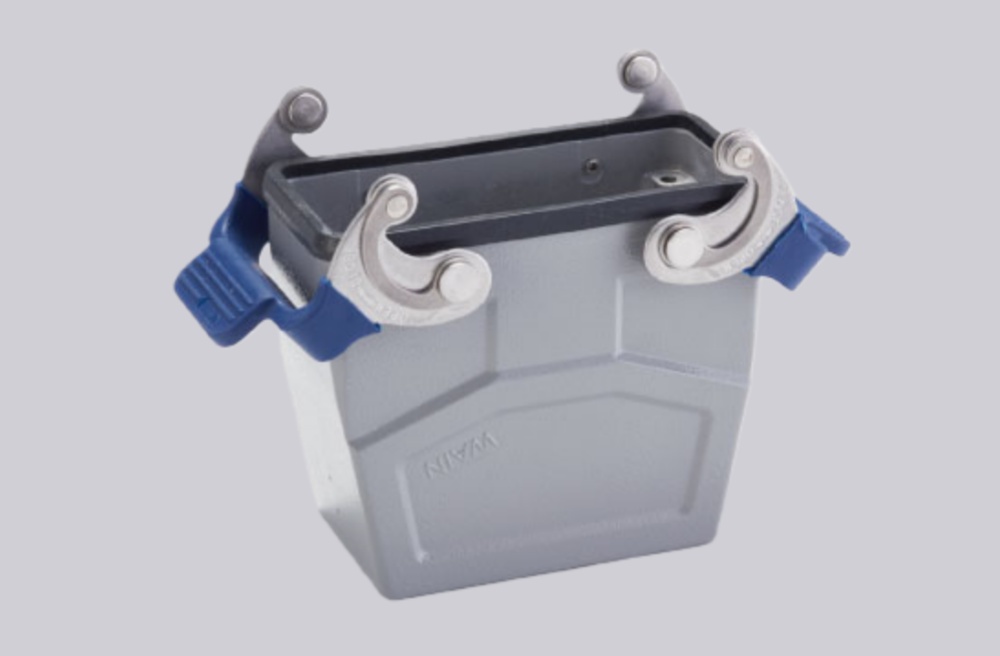

The W16B-CCTH-2L/SC-PG29 is a durable 16B heavy-duty connector housing engineered for stable and secure connections in harsh industrial environments. It features a cable-butting (flying lead) lower housing with a top outlet and PG29 threaded entry, allowing reliable cable routing and easy installation. The dual-lock design ensures firm and vibration-resistant locking, maintaining consistent electrical performance during operation.
Constructed from high-quality die-casting aluminum, the housing is protected by a powder-coated surface in RAL 7037 field gray, providing excellent resistance to corrosion and mechanical stress. The combination of stainless steel and TPR components, together with NBR seals, offers dependable protection against dust, moisture, and environmental influences. The housing meets UL94 flame-retardant requirements, enhancing safety in industrial electrical applications.
With its robust structure, secure sealing, and long service life, the W16B-CCTH-2L/SC-PG29 is well suited for use in automation systems, machinery, and industrial control installations where reliability is critical.
Technical Data
| Series | Classic regular housing |
| Specifications | 16B |
| Housing type | Cable butting (flying lead lower housing) |
| Outgoing method | Top outlet |
| Locking type | Dual lock |
| Thread | PG29 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP67 |
