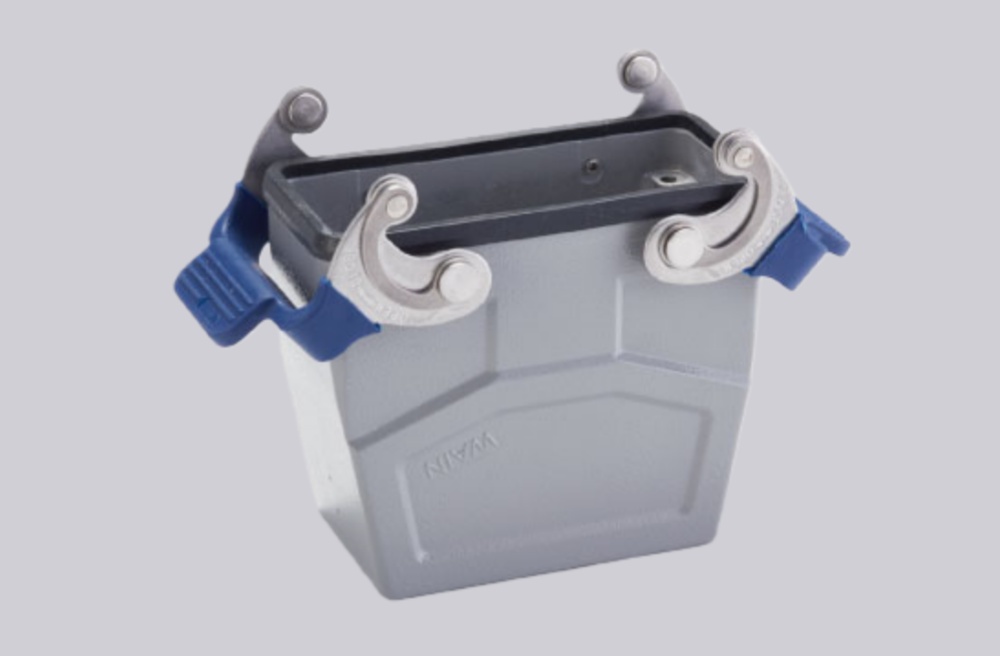

The W16B-CCTH-2L/SC-M40 is a robust 16B heavy-duty connector housing designed for secure and reliable connections in demanding industrial environments. It features a cable-butting (flying lead) lower housing with a top outlet and M40 threaded entry, enabling efficient cable routing and convenient installation. The dual-lock mechanism ensures firm, vibration-resistant locking, maintaining stable performance even under heavy operational conditions.
Constructed from high-quality die-cast aluminum, the housing is finished with a durable powder coating in RAL 7037 field gray, providing excellent resistance to corrosion and mechanical wear. Stainless steel and TPR components, together with NBR sealing elements, offer reliable protection against dust, moisture, and harsh environmental factors. The housing meets UL94 flame-retardant standards, ensuring safety in industrial and electrical applications.
With its strong structure, reliable sealing, and long service life, the W16B-CCTH-2L/SC-M40 is ideal for automation equipment, industrial machinery, and control systems requiring secure and dependable connector protection.
Technical Data
| Series | Classic regular housing |
| Specifications | 16B |
| Housing type | Cable butting (flying lead lower housing) |
| Outgoing method | Top outlet |
| Locking type | Dual lock |
| Thread | M40 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP67 |
