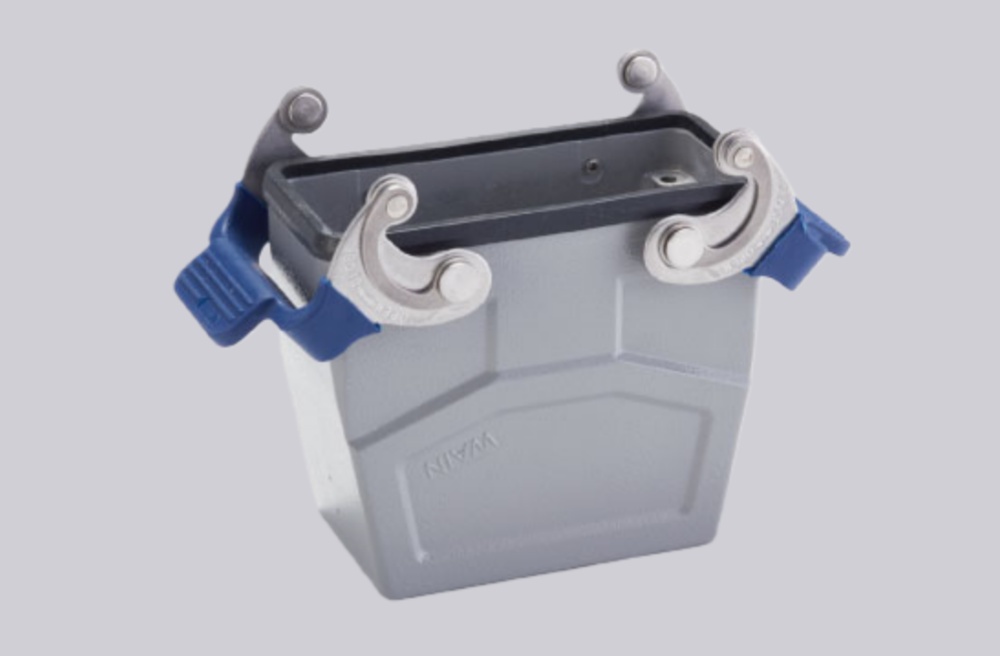

The W16B-CCTH-2L/SC-M25 is a robust 16B heavy-duty connector housing designed for reliable performance in demanding industrial environments. Featuring a cable-butting (flying lead) lower housing with a top outlet and M25 threaded entry, it ensures secure cable connection and efficient wiring installation. The dual-lock mechanism provides stable and vibration-resistant locking, enhancing operational safety during long-term use.
Manufactured from high-quality die-casting aluminum, the housing is finished with durable powder coating in RAL 7037 field gray, offering excellent corrosion resistance and mechanical strength. Stainless steel and TPR components, combined with NBR sealing elements, deliver effective protection against dust, moisture, and harsh environmental conditions. The housing complies with UL94 flame-retardant requirements, ensuring enhanced safety in electrical applications.
With its sturdy construction and dependable sealing performance, the W16B-CCTH-2L/SC-M25 is an ideal solution for automation equipment, machinery, and industrial control systems requiring stable and secure connector protection.
Technical Data
| Series | Classic regular housing |
| Specifications | 16B |
| Housing type | Cable butting (flying lead lower housing) |
| Outgoing method | Top outlet |
| Locking type | Dual lock |
| Thread | M25 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP67 |
